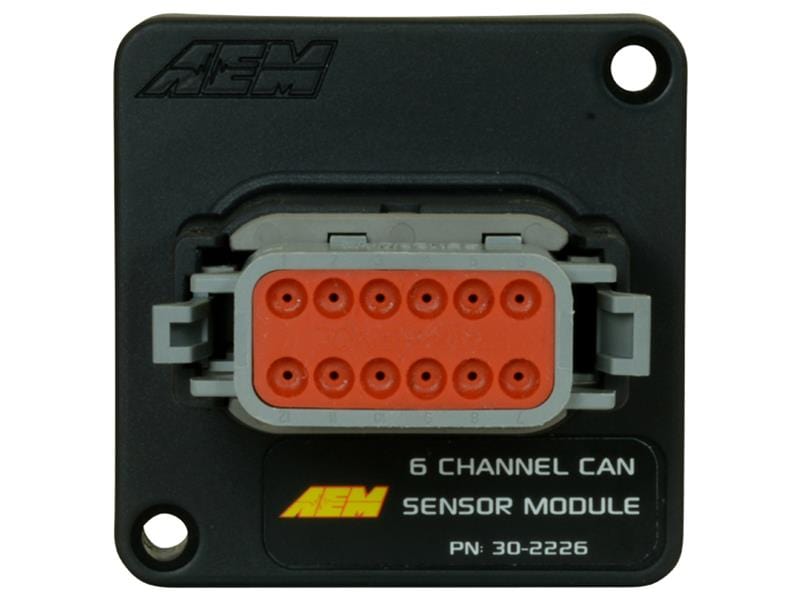

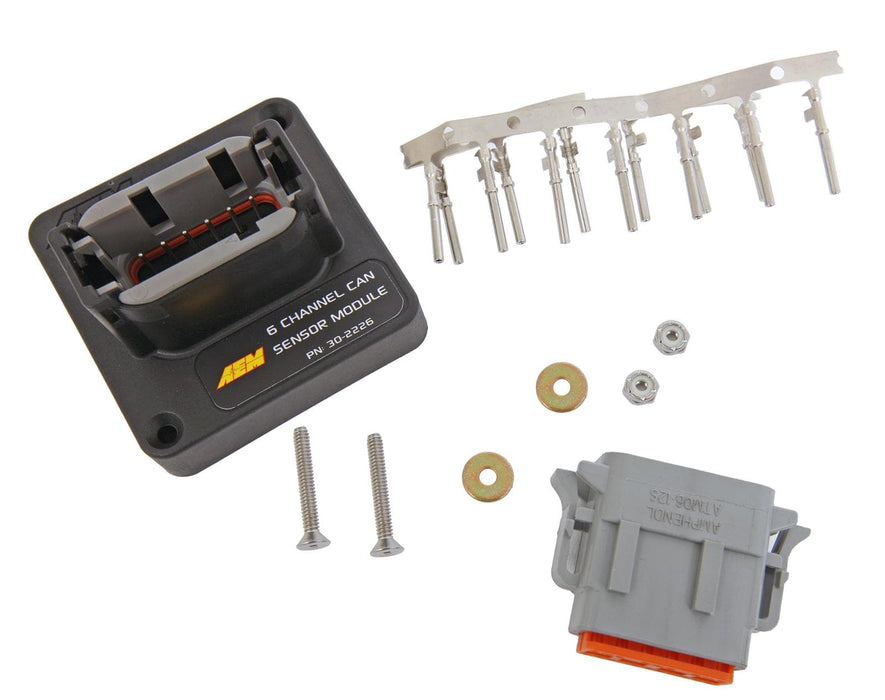

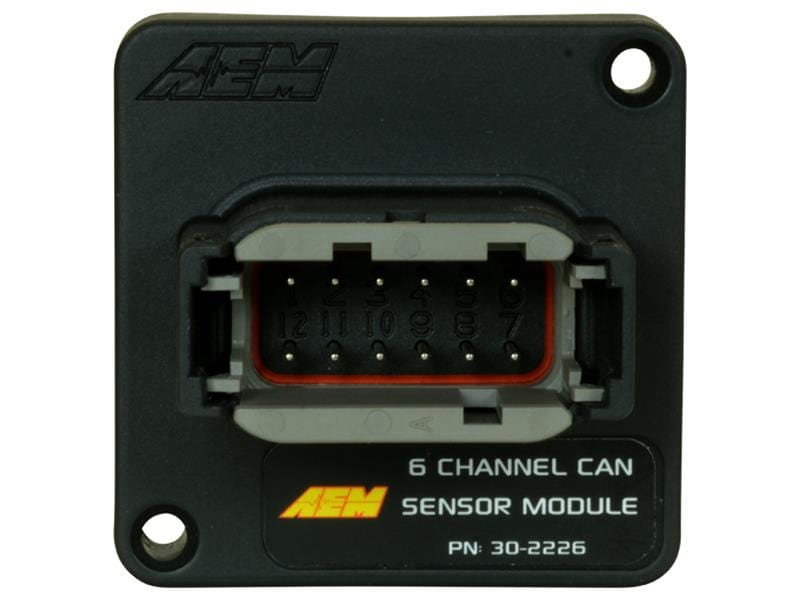

AEM Electronics 6-Channel CAN Sensor Modules 30-2226
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 30-2226
Part Type: Data Acquisition Components
Product Line: AEM Electronics 6-Channel CAN Sensor Modules
Automotive Fittings Part Number: AVM-30-2226
UPC: 00840879026073
Data Acquisition Component Type: Sensor input module
Quantity: Sold individually.
Description:
AEM Electronics 6-Channel CAN sensor modules provide an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to your CD Carbon Digital dash through AEMnet CAN bus. The modules support the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash, or logger.
Features include:
* Two temperature (thermistor) inputs
* Two dedicated 0 to 5 V analog inputs
* One dedicated fuel level input (0 to 250 Ohm range)
* One tachometer/coil input
* Fixed CAN bus speed, header length, and base address
* IP67 potted enclosure/sealed connector—dust-tight and protected against water spray
* Protected inputs
* 12-pin DTM-style connector and pins
