AEM Electronics 8-Channel K-Type EGT CAN Modules 30-2224
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 30-2224
Part Type: Data Acquisition
Product Line: AEM Electronics 8-Channel K-Type EGT CAN Modules
Automotive Fittings Part Number: AVM-30-2224
UPC: 840879025977
Quantity: Sold individually.
Description:

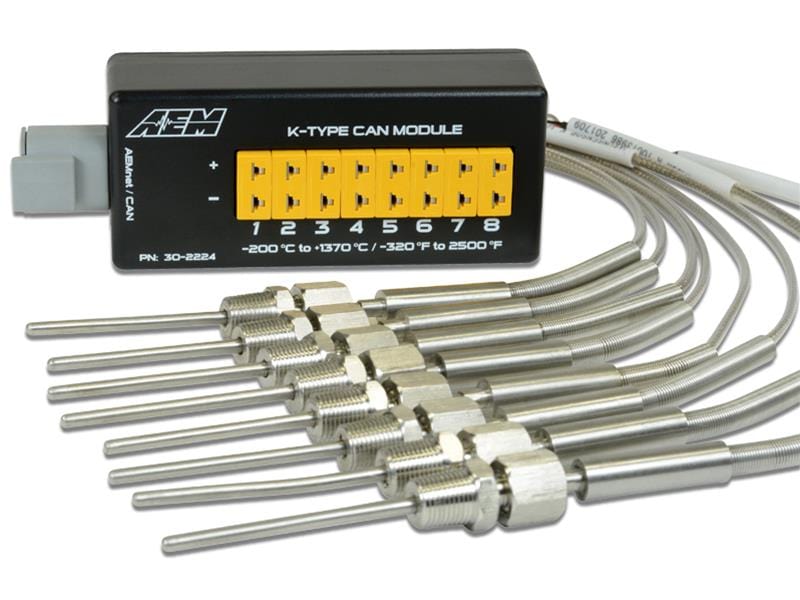

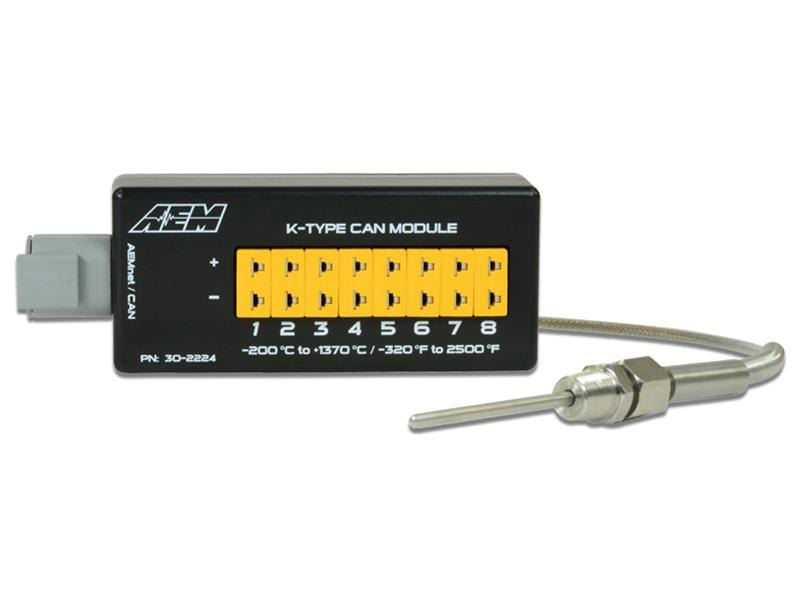

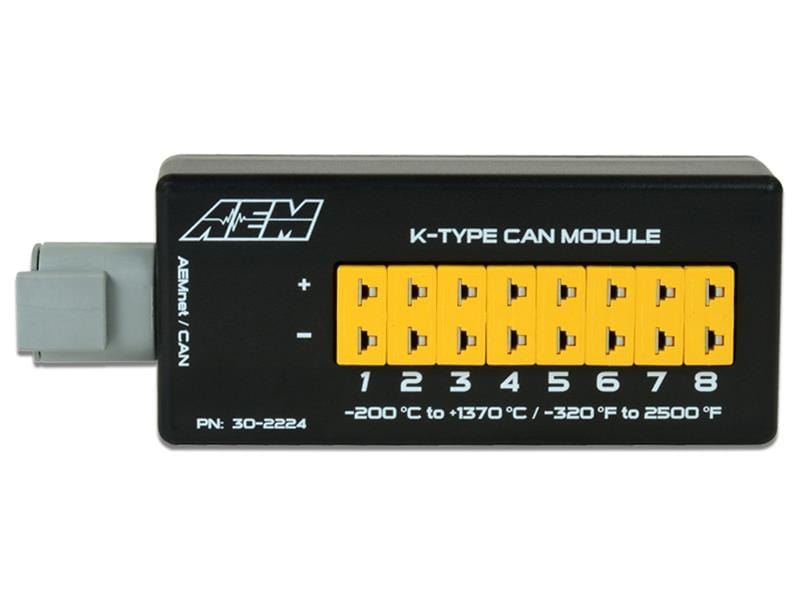

The AEM Electronics 8-Channel K-Type EGT CAN module uses an integrated cold junction sensor to ensure lab-grade temperature readings across all eight channels. It has the ability to read better than one percent full scale, even at the extreme temperature range (-328 to 2,501 degrees F). The module also includes open circuit/fault detection to notify you if a sensor loses its connection or needs to be replaced. This unit will work with non-AEM devices with configurable CAN bus. The module utilizes flexible CAN configuration jumpers, which allow it to be used with just about any third party devices.
Features and benefits include:
* Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors
* Uses common miniature thermocouple sockets
* Daisy-chain two modules together for up to 16 temp inputs through a single plug

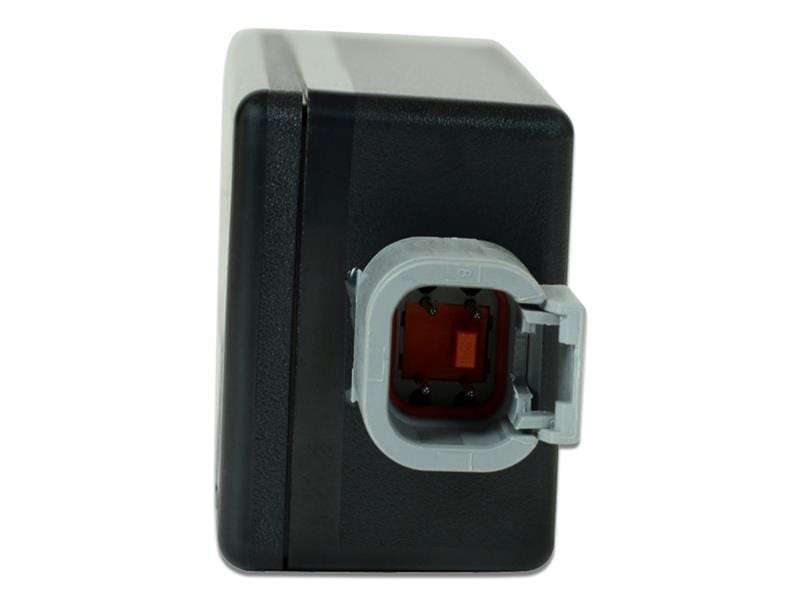

* Outputs all channels via configurable CAN bus via one-plug connection
* Cold junction compensated for lab-grade accuracy
* Temperate resolution 0.18 degrees F
* Integrated open circuit/fault detection
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
