AEM Electronics EGT Thermocouples 30-2068-4
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 30-2068-4
Part Type: Gauge Sending Units
Product Line: AEM Electronics EGT Thermocouples
Automotive Fittings Part Number: AVM-30-2068-4
UPC: 840879026004
Gauge Type: EGT/Pyrometer
Sending Unit: Electrical
Sender Attachment Style: Thread-in
Sending Unit Thread Size: 1/8 in. NPT
Thread Adapter Fittings Included: Yes
Quantity: Sold individually.
Description:

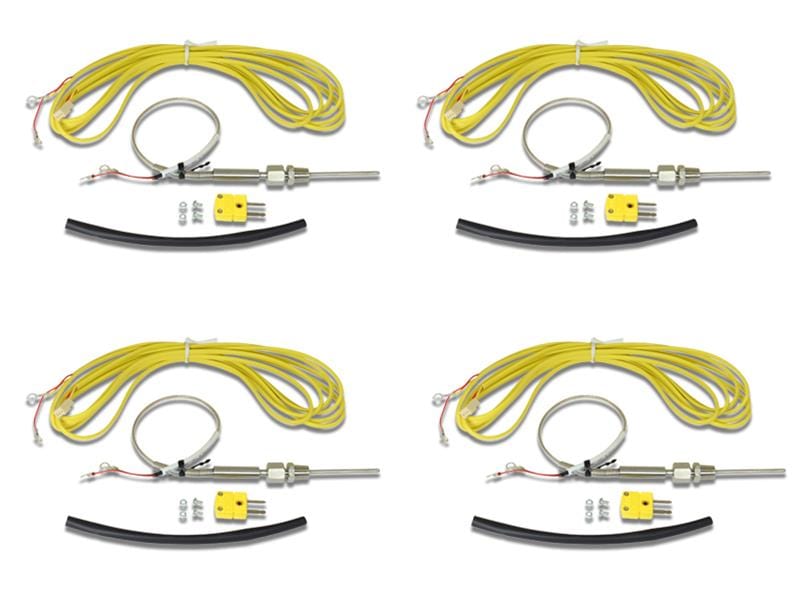

AEM Electronics EGT thermocouples are economical and fast responding K-type thermocouples. They include a closed-tip TC sensor with a protective inconel sheath, 10 ft. extension wire, 1/8 in. NPT compression fitting, and ring and terminal harness. AEM EGT thermocouples are available individually or in 2- or 4-packs.
Specs:
* Maximum temperature: 1800 degrees F (982.2 degrees C)
* Sheath length: 3 in./76.2mm
* Sheath diameter: 0.125 in./3.18mm
* Termination: Ring terminals
* Wire length: 12 in.
* Accuracy: Greater of 3.96 degrees F/2.2 degrees C or 0.75 percent
