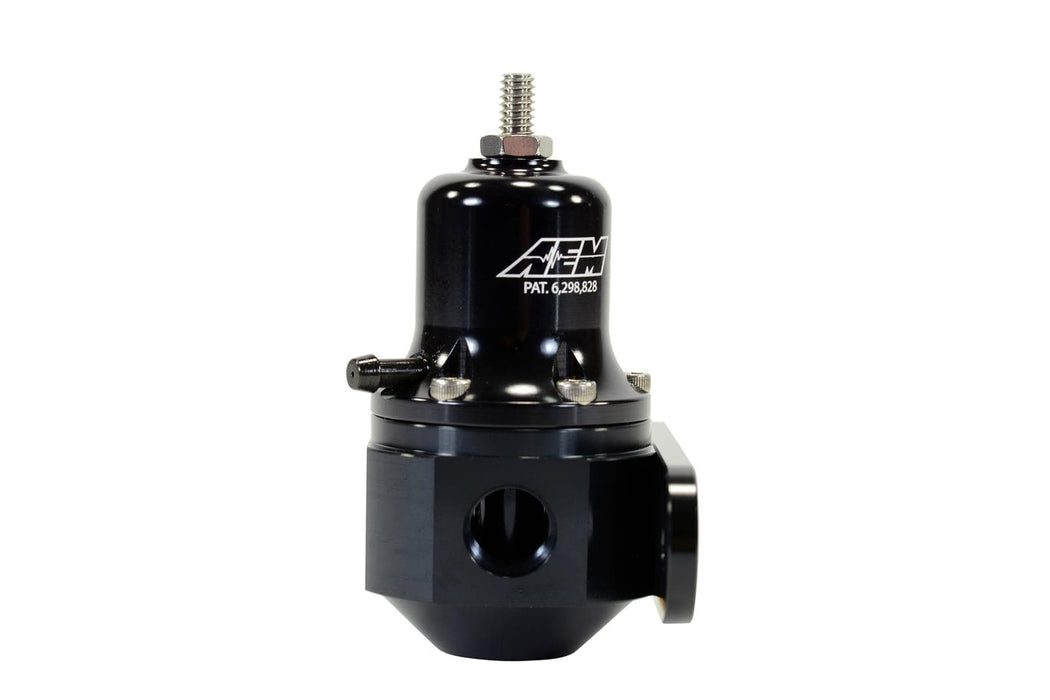

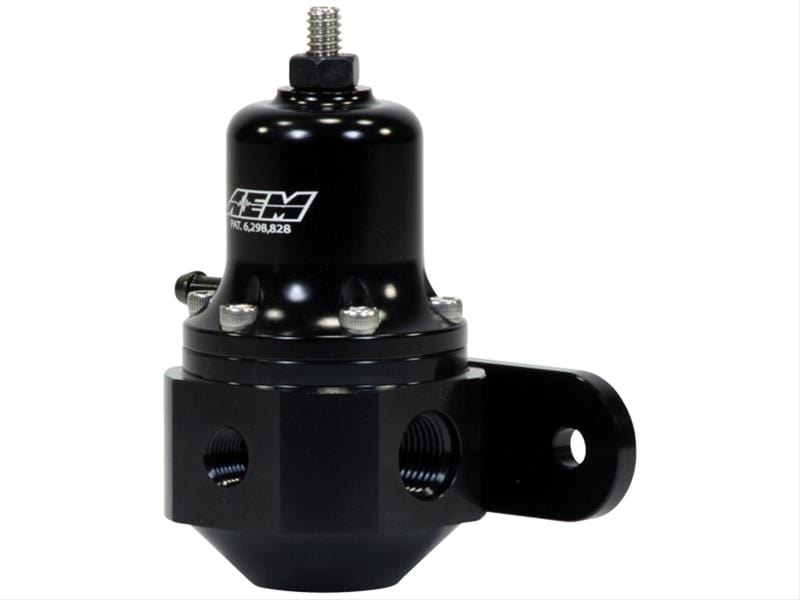

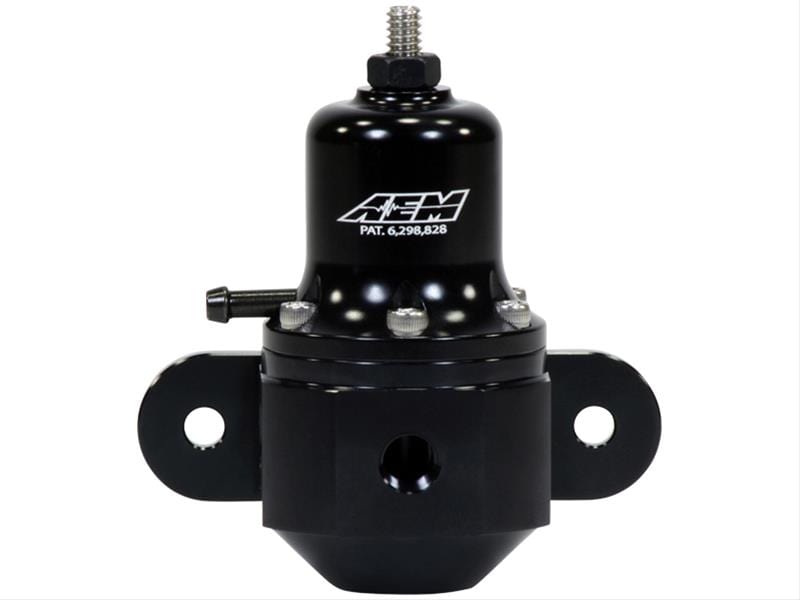

AEM Electronics High-Capacity Fuel Pressure Regulators 25-305BK
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 25-305BK
Part Type: Fuel Pressure Regulators
Product Line: AEM Electronics High-Capacity Fuel Pressure Regulators
Automotive Fittings Part Number: AVM-25-305BK
UPC: 840879025953
Regulator Pressure (psi): 40-130
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -6 AN O-ring
Inlet Attachment: Female O-ring
Outlet Quantity: 1
Regulator Outlet Size: -6 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: No
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Includes a 1/8 in. NPT port for a fuel pressure gauge or pressure sensor pick up.
Description:
AEM Electronics high-capacity fuel pressure regulators are universal and adjustable. They are the perfect solutions for racers who need reliable fuel pressure in high-boost vehicles, and race cars that require a large volume of fuel delivery. AEM high-capacity fuel pressure regulators are CNC-machined from 6061-T6 billet aluminum.
Features include:
* Universal fuel pressure regulator adapts to virtually any vehicle
* Longer spring for wider range of adjustment (40 to 130 psi)
* Single large return orifice accommodates very high-flow rate pumps
* Boost dependent rising fuel pressure rate (1:1)
* Three 9/16 in.-18 ORB O-ring style inlet ports (2 inlet, 1 return)
* Durable, easy-to-use adjustment screw
* Integrated 1/8 in. NPT gauge port
* 5mm (3/16 in.) vacuum hose
* Alcohol fuel and race gas compatible
