AEM Electronics PSIA Sensor Kits 30-2130-7
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 30-2130-7
Part Type: Gauge Sending Units
Product Line: AEM Electronics PSIA Sensor Kits
Automotive Fittings Part Number: AVM-30-2130-7
UPC: 840879025885
Gauge Type: Air/Vacuum
Sending Unit: Electrical
Sender Attachment Style: Thread-in
Sending Unit Thread Size: 1/8 in. NPT
Thread Adapter Fittings Included: Yes
Quantity: Sold as a kit.

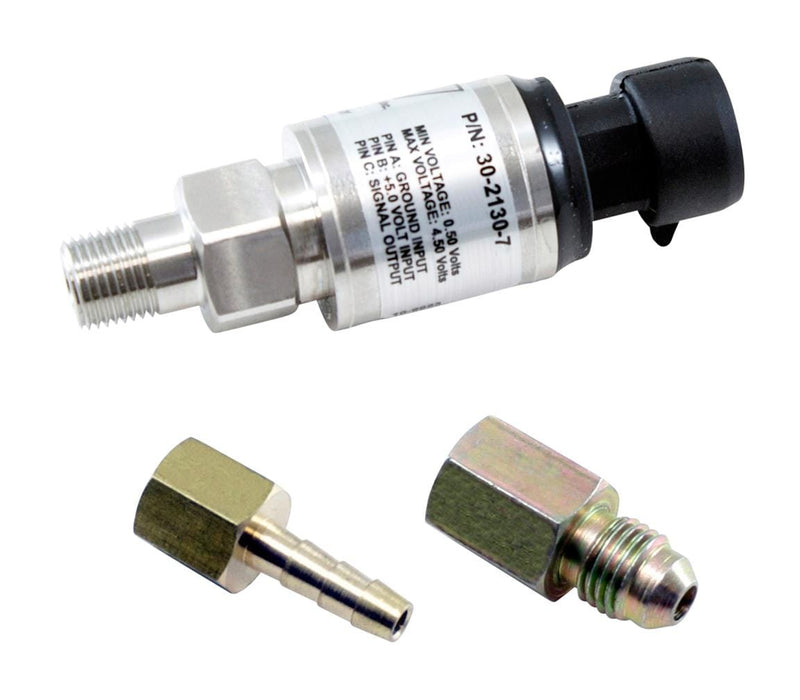

Notes: Stainless steel, 7 Bar., includes 1/8 in. NPT to -4AN and 1/8 in. NPT to 3/16 in. hose barb adapters.
Description:
AEM Electronics offers high-quality stainless steel PSIa sensor kits in 15 (1 BAR), 30 (2 BAR), 50 (3.5 BAR), 75 (5 BAR) and 100 (7 BAR). PSIa is referenced to absolute zero—the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 psi when the sensing element is exposed to atmospheric pressure at sea level; however, they can be recalibrated to read zero at atmospheric, and a negative number at values less than atmospheric pressure.
