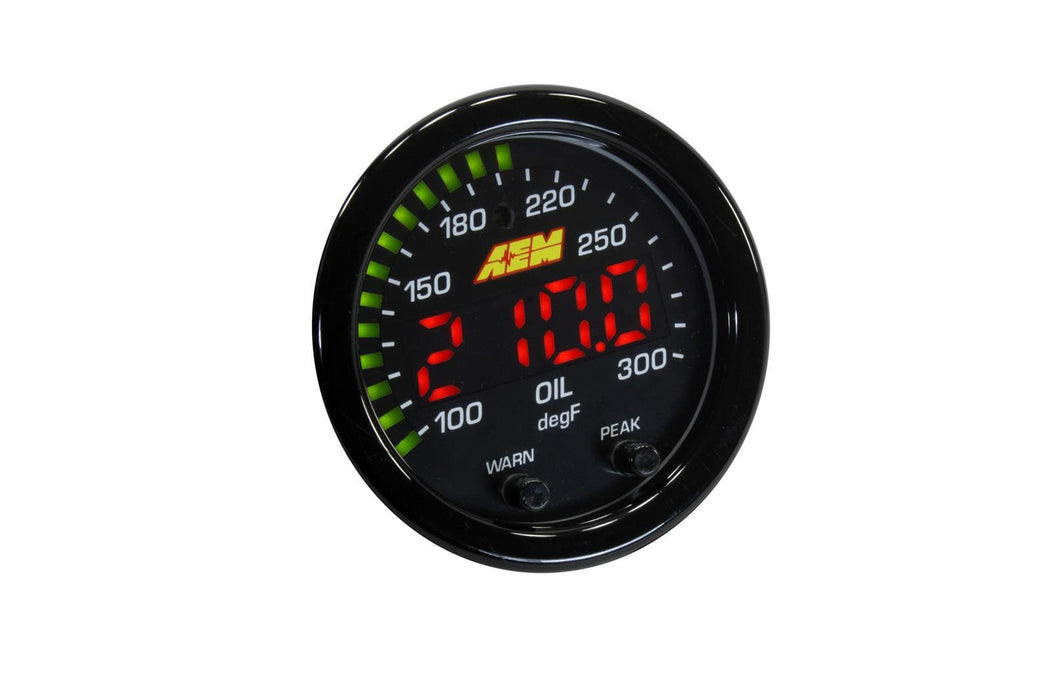

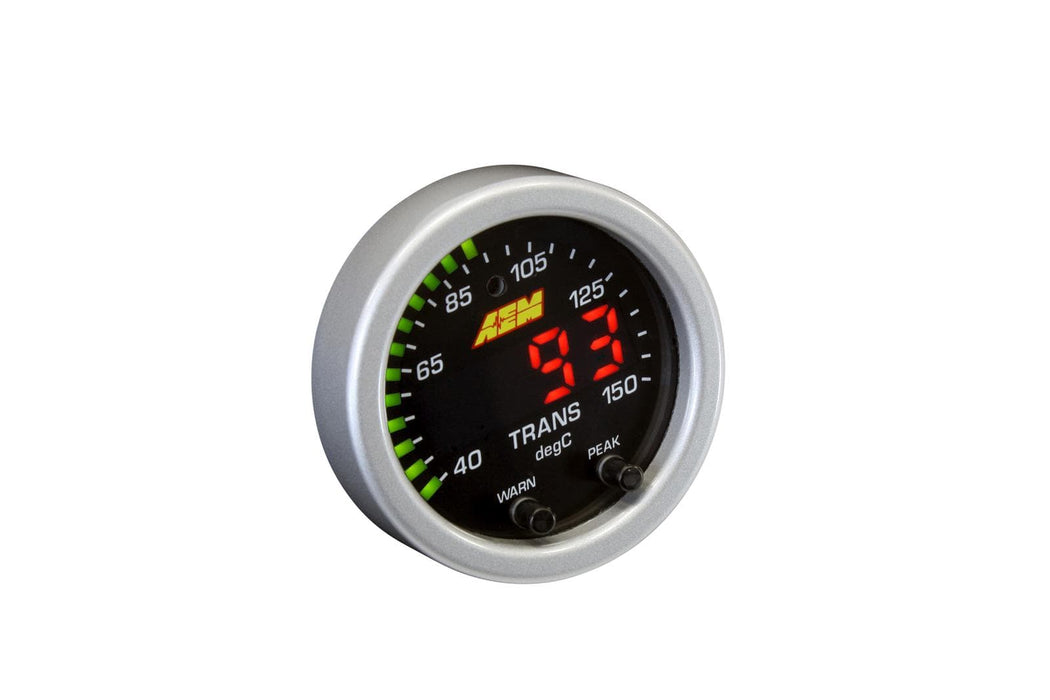

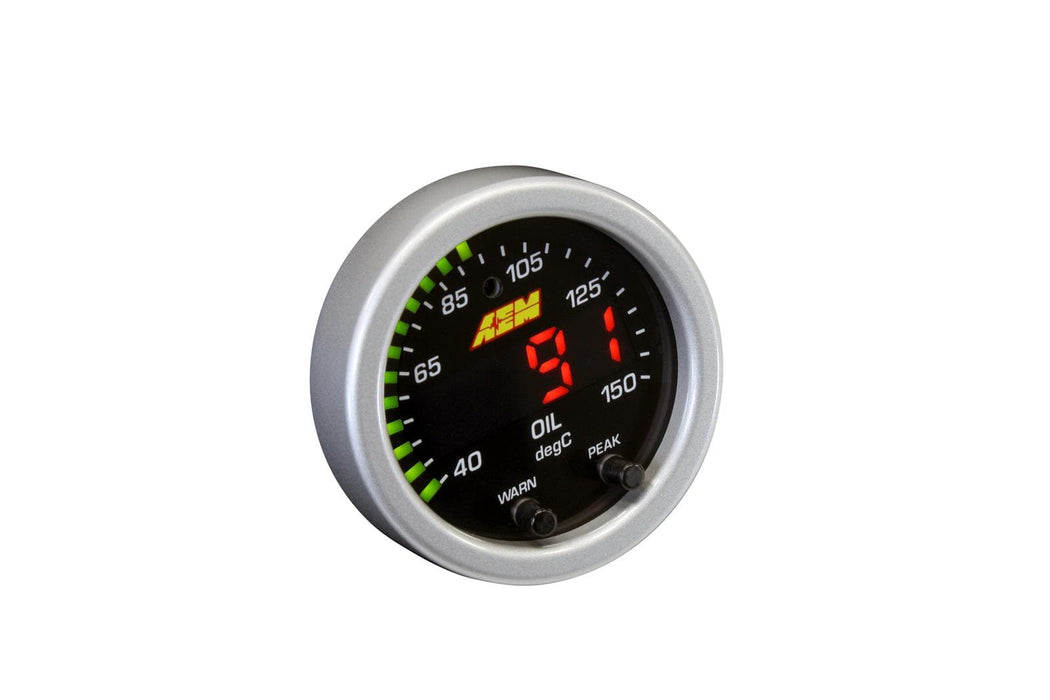

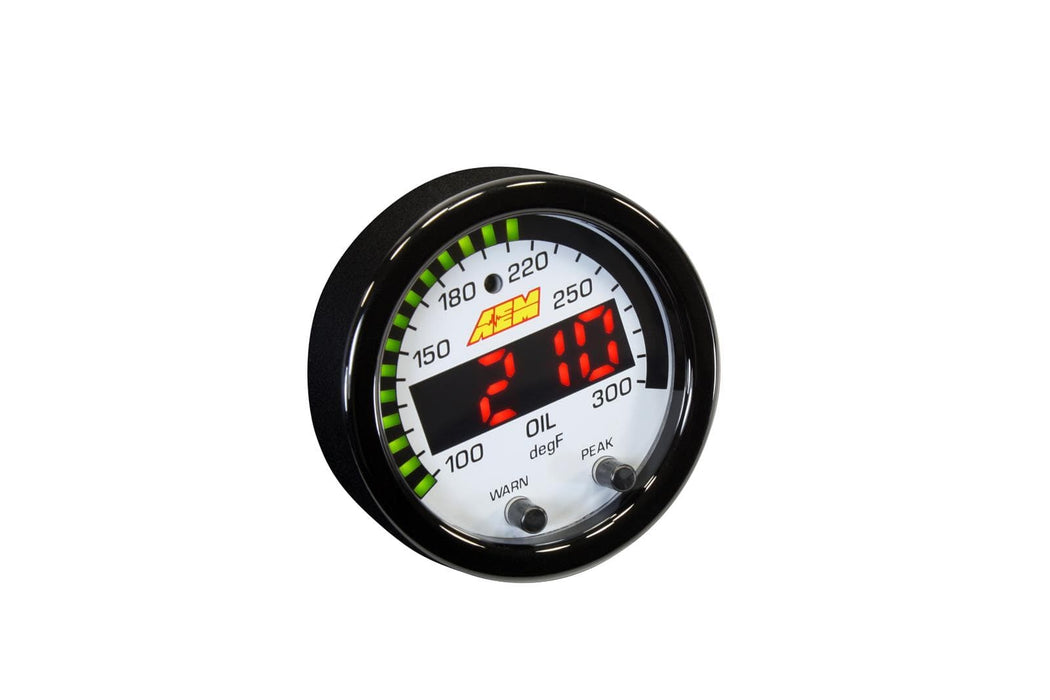

AEM Electronics X-Series Temperature Gauges 30-0302
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 30-0302
Part Type: Gauges
Product Line: AEM Electronics X-Series Temperature Gauges
Automotive Fittings Part Number: AVM-30-0302
UPC: 840879024499
Gauge Type: Water/Oil temperature
OEM Replacement: No
Gauge Style: Digital
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/16 in.
Gauge Diameter (mm): 52mm
Gauge Range: 100-300 degrees F
Gauge Shape: Round
Sweep: Full sweep
Gauge Face Color: Black
Gauge Number Color: White
Bezel Color: Black
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No

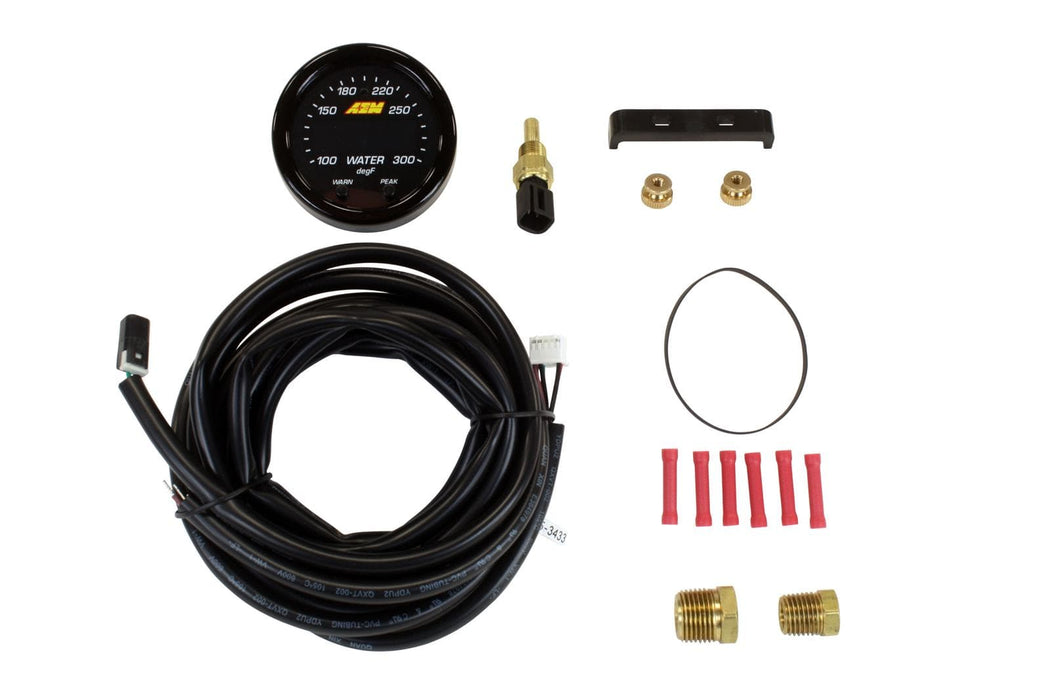

Sending Unit Included: Yes
Remanufactured: No
Quantity: Sold individually.
Description:
AEM Electronics X-Series temperature gauges are must-haves for accurate oil, water, and transmission temperature readouts in your high performance vehicle. These digital gauges include many new technological features that make them easier to use. Combine those perks with exceptional looks with increased visibility, and you'll agree: X-Series temperature gauges are hot.
Features include:
* Black water temperature face and black bezel

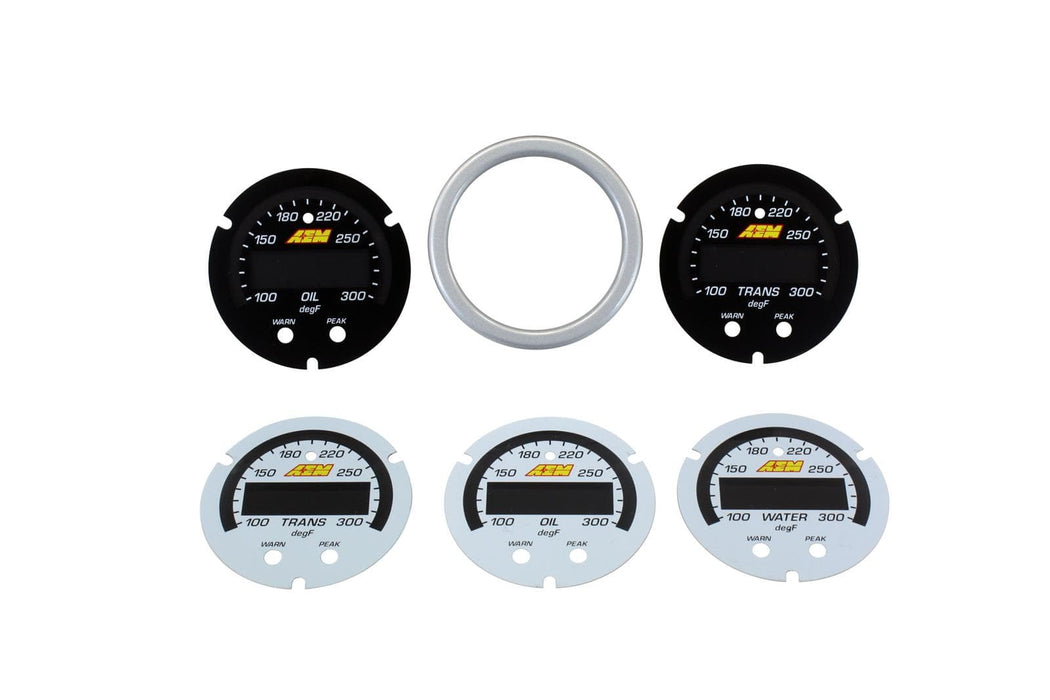

* Available accessory kit with silver bezel; white water, transmission and oil temperature, and black transmission and oil temperature faceplates (sold separately; see Suggested Parts tab)
* 24 green outer-edge LEDs offer quick reference to engine parameter
* Auto-dimming sensor delivers ideal display brightness
* Programmable center LED is 87 percent larger than original AEM gauges
* User-selectable standard or metric display (100 to 300 F/40 to 150 C)
* User-selectable threshold warnings
* Peak/recall via gauge face buttons
* AEMnet CANbus-enabled for transmitting data to EMS or data-logger
* 0-5 V analog outputs for transmitting data to EMS or data-logger
* 33 percent larger gauge face display makes it easier to see at a glance
* Standard 2 1/16 in. (52mm) diameter housings for easy mounting in gauge pods
* Slim 0.825 in. overall depth and 0.200 in. cup depth--mount them virtually anywhere
* Positive locking connectors provide secure connection
