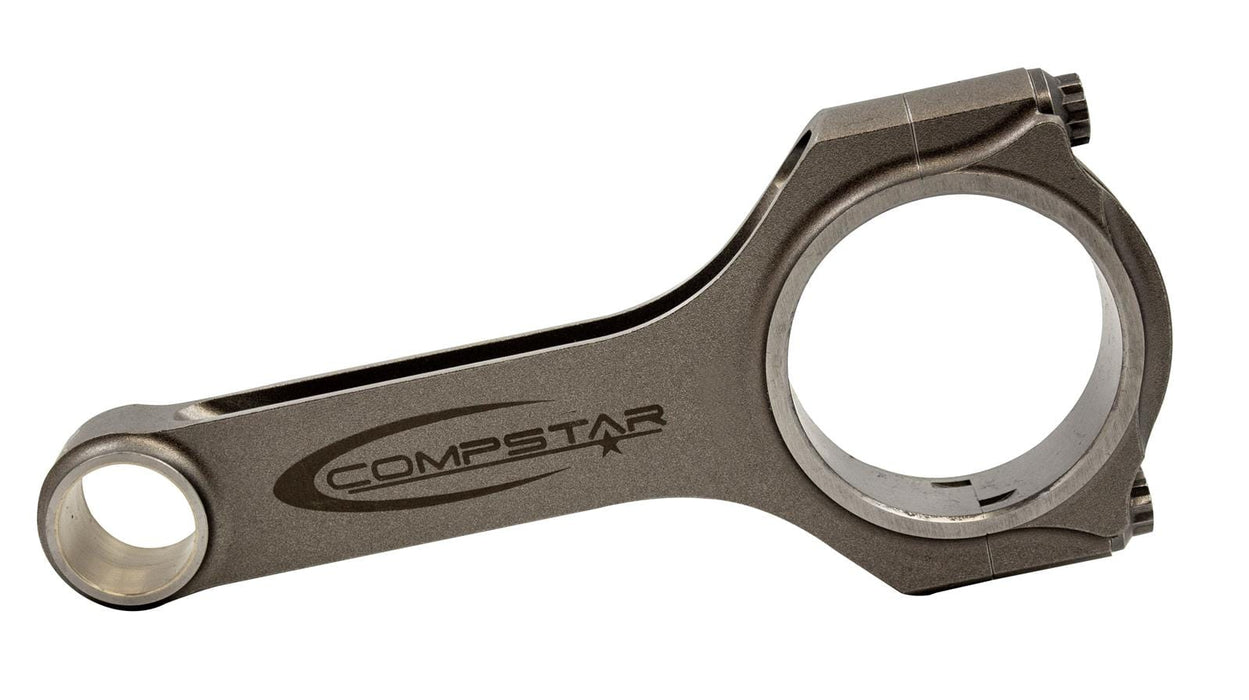

Callies Compstar Connecting Rods C25101
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: C25101
Part Type: Connecting Rods
Product Line: Callies Compstar Connecting Rods
Automotive Fittings Part Number: CPI-C25101
Connecting Rod Length Center to Center (in.): 5.677 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.867 in.
Rod Journal Diameter (in.): 2.147
Big End Bore Diameter (in.): 2.1656
Quantity: Sold as a set of 6.
Cap Retention Style: Cap screw
Big End Width (in.): 0.818
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: ARP2000 alloy
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Advertised Horsepower Rating: 1,050 hp
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Description:
Better by design, Callies Compstar connecting rods offer high performance and a trouble-free engine build. Concerns about out-of-round, big-end bore sizing, repeatability, time-saving details, and upgrade costs are a thing of the past. Their forged 4340 steel rods are put through a lengthy stress-relief process and burnishing of threads and bolt spot faces to ensure dimensional repeatability, no matter how many times rods are torn down and reassembled. Pin bushings are chamfered and honed, parting line edges are generously chamfered, and bearing locating tab slots are deburred, all in an effort to save you time and trouble. ARP 2000 bolts and stroker clearances are standard with Compstar rods. Choose either their original H-beam design or heavy-duty I-beam designed rods. For high performance use right out of the box, plus value and peace of mind, try Callies Compstar connecting rods.
