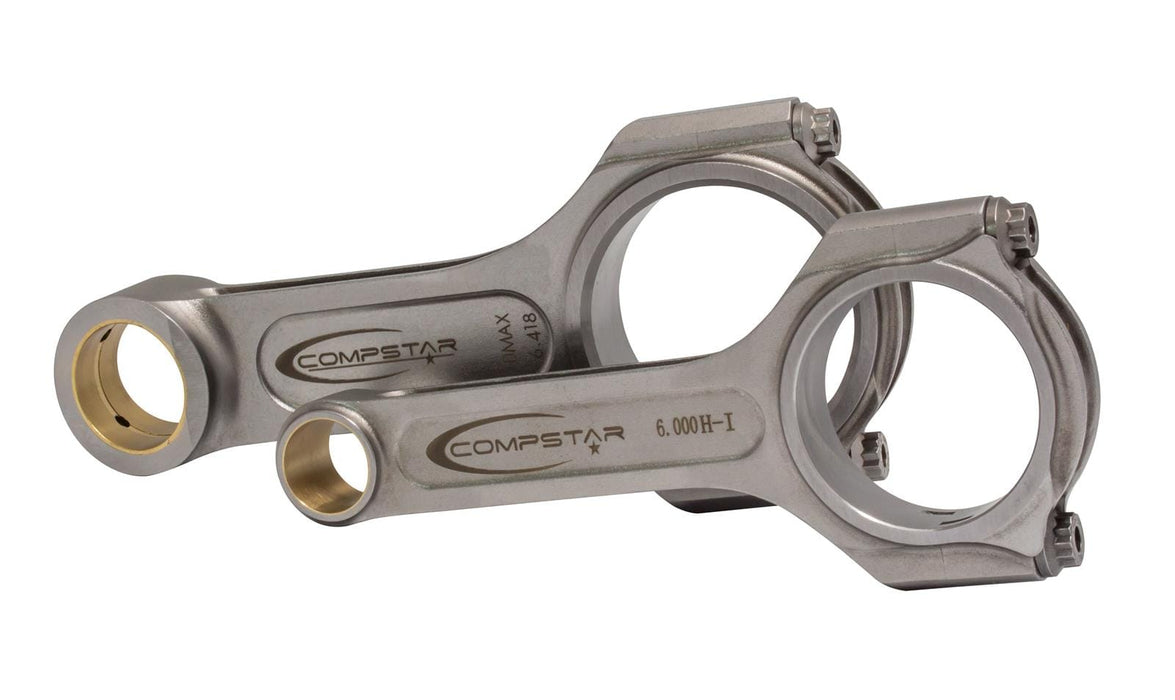

Callies Compstar Xtreme Connecting Rods CSB6385ES3BDAX
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: CSB6385ES3BDAX
Part Type: Connecting Rods
Product Line: Callies Compstar Xtreme Connecting Rods
Automotive Fittings Part Number: CPI-S0006
Connecting Rod Length Center to Center (in.): 6.385 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Chromoly 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.2000
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.990
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: L19 alloy
Fastener Tensile Strength (psi): 220,000 psi
Connecting Rod Bolt Head Style: 12-point
Advertised Horsepower Rating: 1,600 hp
Advertised RPM Rating: 7,600 rpm
Pin End Width (in.): 1.054 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Description:
All the quality, reliability, and workmanship you have relied upon for years from the Compstar lineup is taken to the Xtreme--Callies Compstar Xtreme connecting rods.
Specifically designed for power adder and diesel applications, these rods utilize the same proven 4340 material and ARP 2000 or L19 fasteners. Strength was added by thickening up the flanges of the H-beam and a reduced depth-of-cut towards the center of each rod, then non-essential weight is taken out of the beam to help keep the overall weight of these Xtreme rods in check. Choose a set for your high output, boosted application.
