DIAMOND 4.500" bore, 4.250" stroke, 7.100" rod length, +72cc dome volume 540 Hemi Dome Top Forged Pistons With Rings D52568-8 Autofit

540 Hemi Dome Top Forged Pistons With Rings D52568-8

RPCR3908 - CHROME BRAKE BOOSTER 8 DIAM
SKU D52568-8
by DIAMOND
$2,575.62 - $2,575.62
$2,575.62
$2,575.62
$2,575.62 - $2,575.62
$2,575.62
$2961.963 Including GST (NZ Customers only)
Availability:
Low stock

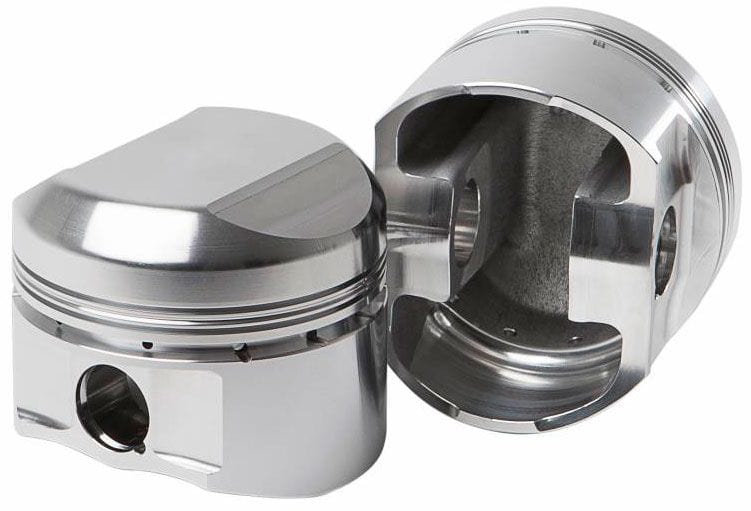

540 Hemi Dome Top Forged Pistons With Rings

4.500" bore, 4.250" stroke, 7.100" rod length, +72cc dome volume

D52568-8

2568-8

3D milling on piston crowns for ready to install finish Designed to work with most oem open and closed chamber cylinder heads Top ring down dimension: .240" Ratios figured for .040 head gasket @ 10.720 Deck Standard 1/16 x 1/16 x 3/16 ring package Premium 8620 .155W wrist pins included Valve pocket depth: 0.225" intake and .191" exhaust Will work with up to a intake valve size of 2.190" and exhaust valve size of 1.880" Made from 4032 alloy
