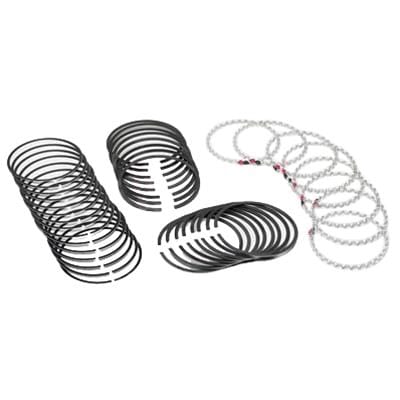

JE Pistons Pro Seal Piston Rings S100S1-4165-5
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: S100S1-4165-5
Part Type: Piston Rings
Product Line: JE Pistons Pro Seal Piston Rings
Automotive Fittings Part Number: JEP-S100S141655
UPC: 193564231130
Bore (in.): 4.165 in.
Bore (mm): 105.791mm
Piston and Ring Oversize (in.): 0.005 in.
Piston and Ring Oversize (mm): 0.127mm
File Fit: Yes
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1/16 in.
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Included: Yes
Second Ring Thickness: 1/16 in.
Second Ring Material: Iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 3/16 in.
Oil Ring Tension: Standard
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Quantity: Sold as 8 sets.
Notes: This is a single cylinder replacement set for the 8-cylinder S100S8-4165-5 sets.
Description:
JE Pistons Pro Seal piston rings feature barrel-faced top rings made from premium ductile iron. They also have a special high-tech, friction-reducing, plasma-moly inlay on the face that combines molybdenum, nickel, chrome, and trace elements. The results are higher temperature resistance, reduced wear, better ring sealing, and reduced flaking. The second rings are a taper-faced, reverse-torsional design with a special phosphate coating. The oil-control rings are available in your choice of either low or standard-tension types. Choose the set designed for fitment on your engine application.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
