Radium Engineering Electrical Bulkhead Connectors 17-0048
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 17-0048
Part Type: Electrical Bulkhead Connectors
Product Line: Radium Engineering Electrical Bulkhead Connectors
Automotive Fittings Part Number: RDM-17-0048
Bulkhead Connector Material: 304 stainless steel
Bulkhead Nut Included: Yes
Quantity: Sold as a set of 6.
Description:

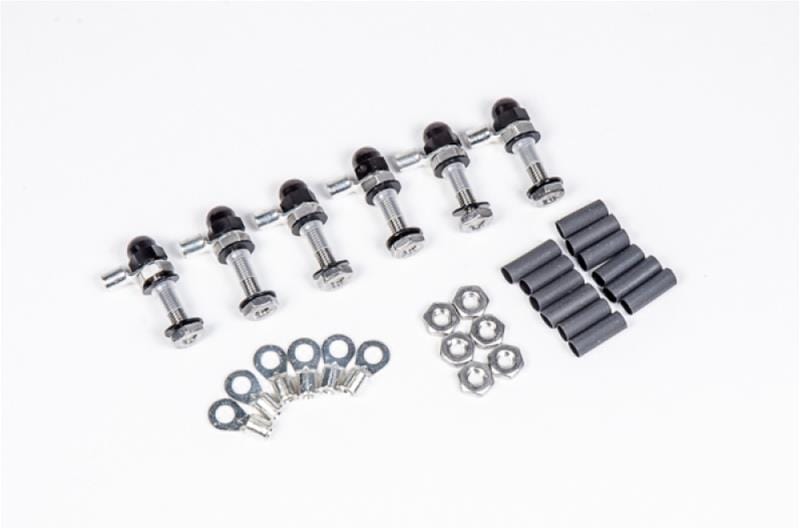

Radium Engineering electrical bulkhead connectors are hermetically sealed bulkhead studs for passing high current through a wall or panel. All that is required is a drilled hole in the wall or panel for installation. Each electrical conductive stud is custom CNC-machined from 304 stainless steel. A special insulating sleeve is also included to prevent panel conduction and galvanic corrosion. The ring terminal accepts 10-12 AWG wire. The anodized aluminum nut and heat shrink insulates the exposed areas from accidental shorts. The studs include two top-locking nuts for a reliable connection.
