Radium Engineering Venturi Jet Pump Kits 20-0180
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 20-0180
Part Type: Fuel Pump Components
Product Line: Radium Engineering Venturi Jet Pump Kits
Automotive Fittings Part Number: RDM-20-0180
Fuel Pump Component Type: Jet pump valve
Quantity: Sold as a kit.
Notes: Includes all fittings.
Description:

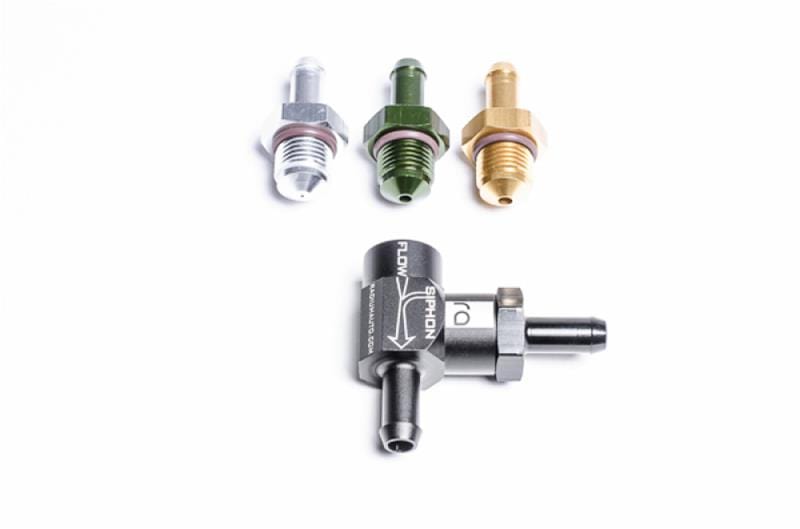

Radium Engineering's Venturi jet pump kits are designed for high-flow aftermarket pumps and includes three different Venturi orifices to match a wide range of pump flow rates. The Radium jet pump is an effective device for drawing fuel from one side of a fuel tank to the other. Fuel flowing through the venturi creates vacuum in the perpendicular port. The Venturi jet pump uses a machined aluminum housing that is anodized, and laser engraved. Kit includes three interchangeable orifices that were precisely calculated, and vacuum pressure tested with multiple pump combinations. All hose barb connections are compatible with 5/16 in. or 3/8 in. ID hose. Also, the crossover siphon port can be easily adapted to common hoses as it uses 6AN ORB (9/16 in.-18 O-ring) female threads.
