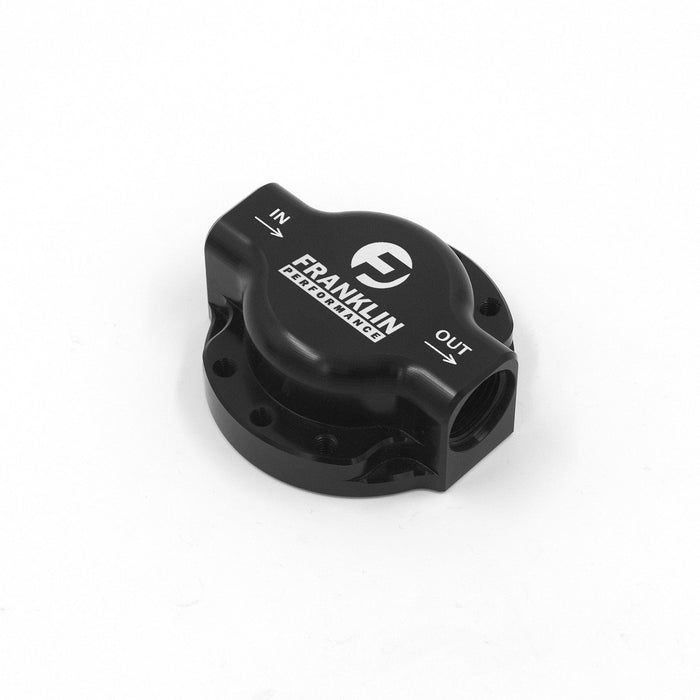

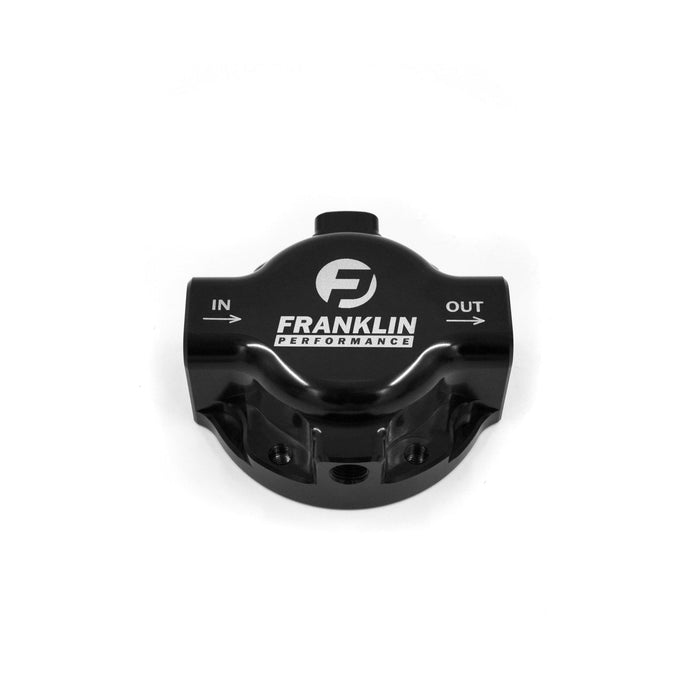

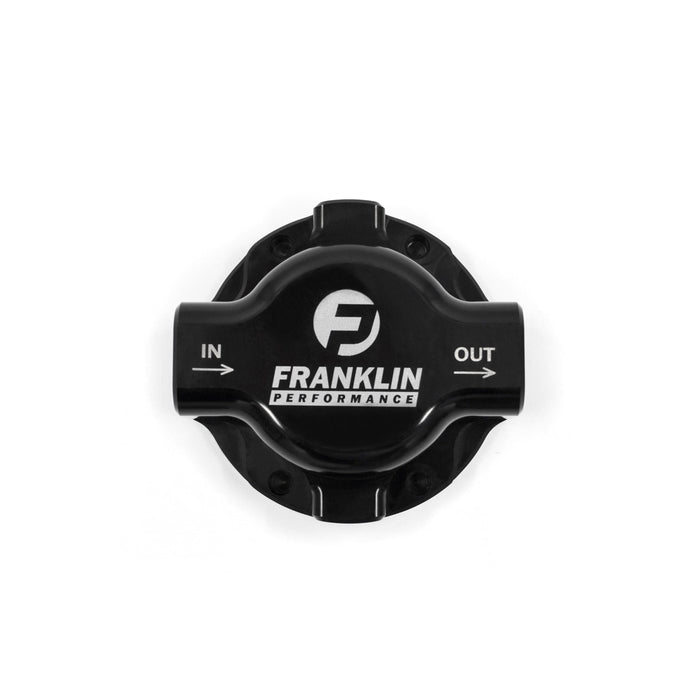

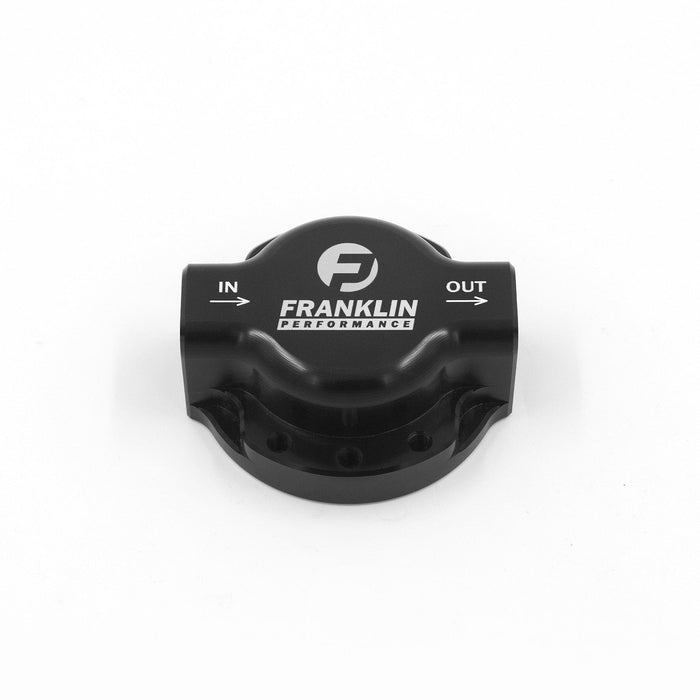

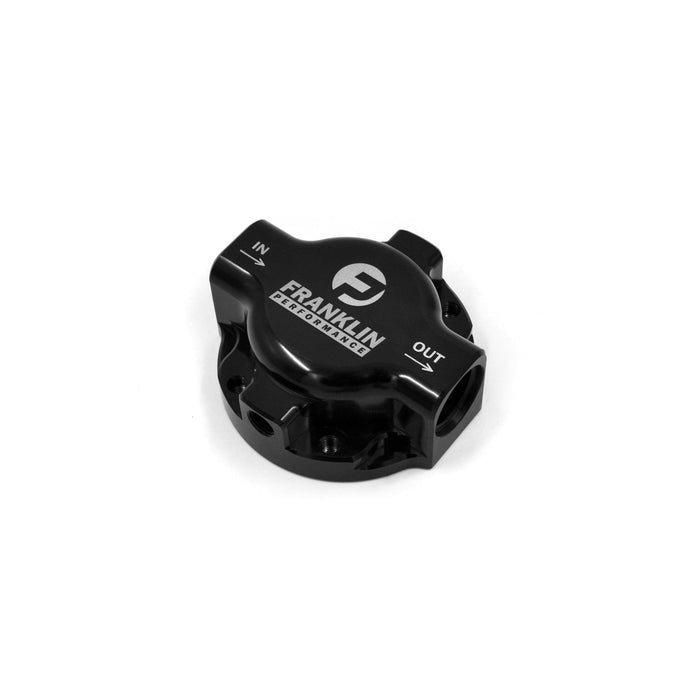

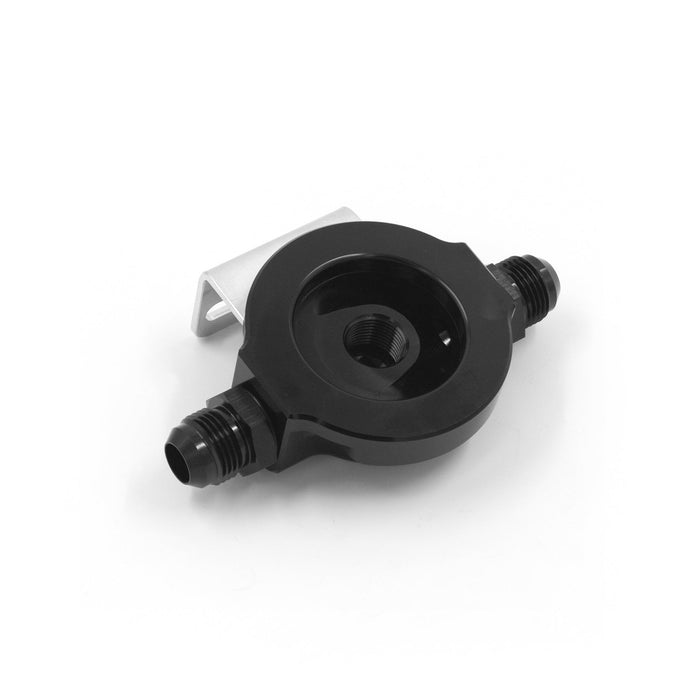

Remote Oil Filter Mount

Remote filter mount manufactured by Franklin Performance for mounting an oil filter away from your engine, to make filter changes easier or where space is limited in the engine bay.

This is very high quality product that we have designed and manufacture at our factory in Napier, New Zealand. The product has many features to improve oil flow that you won't find on other remote filter mounts.

The remote filter mount is available with and without the 1/8 ”NPT ports.

Filter mount with 1/8” NPT ports

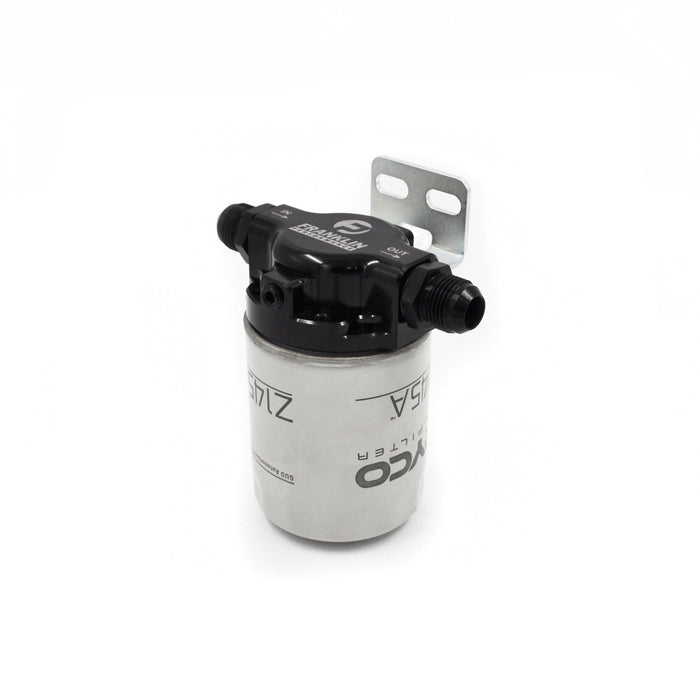

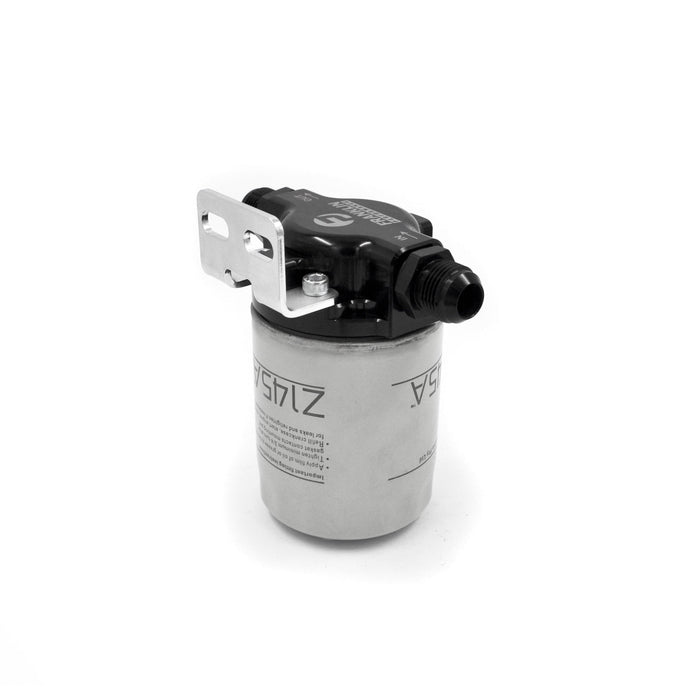

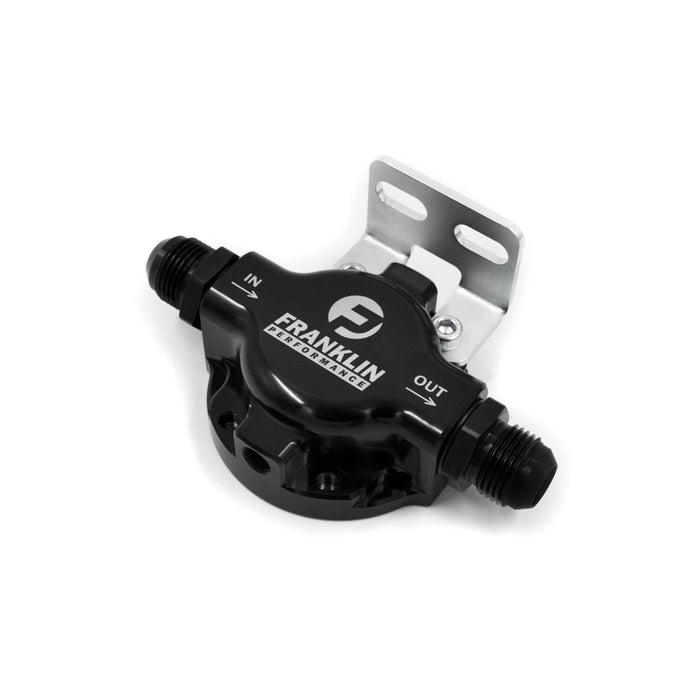

Two labelled 10AN O-Ring ports are provided for plumbing the engine oil to and from the filter mount. Two 1/8” NPT ports are provided on the outlet side of the filter for pressure or temperature sensors. It has a bracket which can be mounted four different ways to make installation easier.

Filter mount WITHOUT 1/8” NPT ports
Two labelled 10AN O-Ring ports are provided for plumbing the engine oil to and from the filter mount. It has a bracket which can be mounted four different ways to make installation easier.

It is supplied with either a 3/4" UNF or M20x1.5 adaptor to suit your factory oil filter. Please choose the adaptor you require from the drop down menu.

The main body is made from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance.

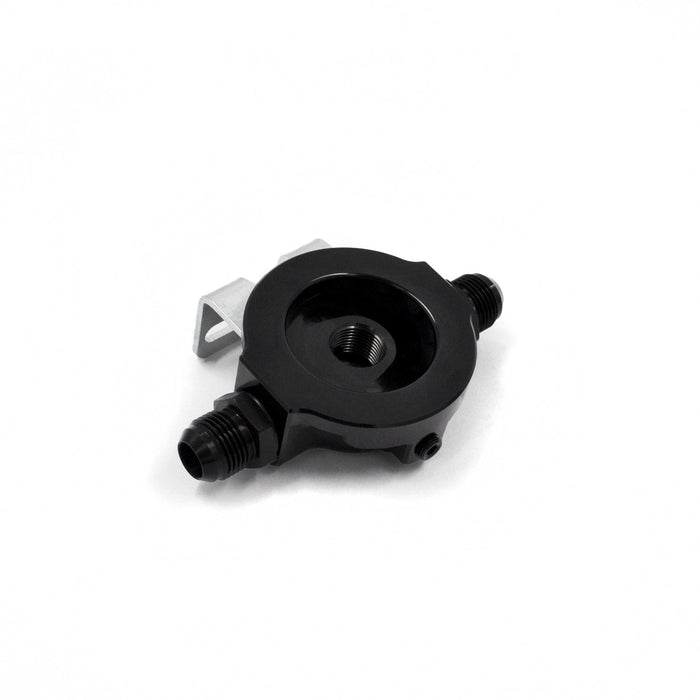

The sealing face for the oil filter is designed to suit most common oil filters - it has an inside diameter of 55mm and outside diameter of 78mm.
