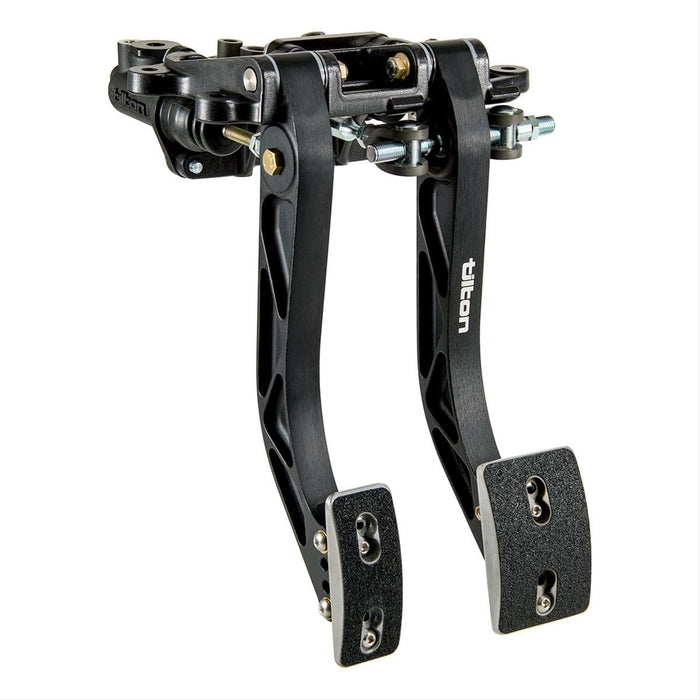

Tilton 800-Series Firewall-Mount Pedal Assemblies 72-807
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 72-807
Part Type: Pedal Assemblies
Product Line: Tilton 800-Series Firewall-Mount Pedal Assemblies
Automotive Fittings Part Number: TIL-72-807
Pedal Type: Brake/Clutch
Pedal Mounting Location: Firewall mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Gas Pedal Shape: Rectangle
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.0:1 to 6.2:1
Brake Pedal Width (in.): 2.60 in.
Brake Pedal Length (in.): 3.75 in.
Clutch Pedal Width (in.): 1.60 in.
Clutch Pedal Length (in.): 3.75 in.
Balance Bar Included: Yes
Quantity: Sold individually.
Notes: Master cylinders sold separately.
Description:
Tilton's 800-Series firewall-mount pedal assemblies merge the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. They feature high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.
Product features:
* High-efficiency balance bar and pivot-mount master cylinder design
* Forged aluminum pedals are engineered for high rigidity and low weight
* Adjustable pedal ratios (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
* Foot pads can be adjusted vertically, horizontally, and in angle to suit individual driver preferences
* Large diameter 7/16 in.-20 balance bar provides maximum rigidity. PTFE-coated aluminum clevises for increased durability and reduced friction
* Pedal pivots feature wave washers to reduce lateral pedal movement and oil-impregnated bronze bushings decrease stiction
* Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping, decreasing friction and improving brake repeatability
