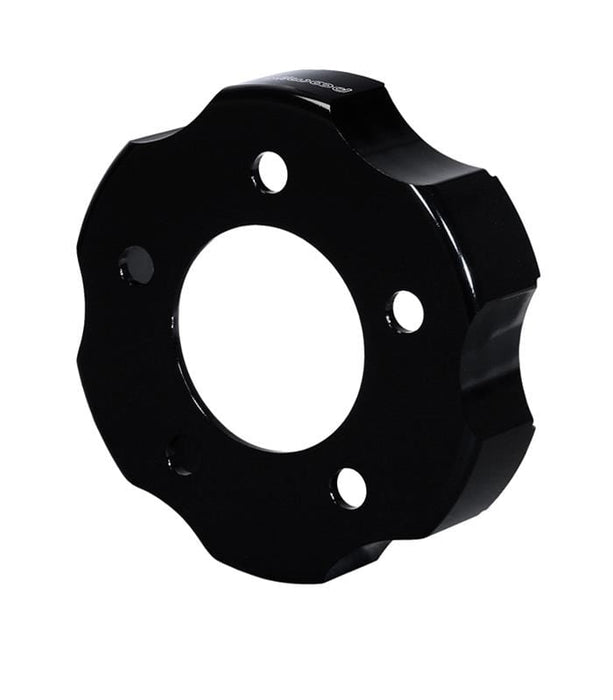

Wilwood GT Series Drag Hats 170-14095
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 170-14095
Part Type: Brake Rotor Hats
Product Line: Wilwood GT Series Drag Hats
Automotive Fittings Part Number: WIL-170-14095
UPC: 889545073874
Brake Rotor Hat Type: 5/16-18 in. threaded hole
Brake Rotor Hat Material: Aluminum
Brake Rotor Hat Color: Black
Brake Rotor Hat Bolt Circle: 6 x 6.25 in.
Brake Rotor Hat Offset (in.): 1.38
Brake Rotor Hat Stud Hole Diameter (in.): 0.55
Brake Rotor Hat Center Hole I.D. (in.): 3.06
Brake Rotor Hat Face Thickness (in.): 0.25
Brake Rotor Hat Clearance I.D. (in.): 5.49
Quantity: Sold individually.
Notes: Features a 1.380 in. shallow offset.
Description:
Wilwood GT Series Drag hats are precision-machined from premium aluminum alloys for high strength and attention to minimized weight. Brake rotor hats in this specific category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded-hole hats may also be used with T-nuts or bobbins designed for use with specially machined slotted-hole dynamic mount rotors.
When used in conjunction with a matched Wilwood rotor hardware kit, the GT Series hats provide solid, reliable performance in the most demanding conditions. The Shallow Offset Drag hats are for narrow space applications with offsets often less than 1.00 in., and are available for most brake rotor bolt patterns in a variety of 4- and 5-lug wheel patterns. For best-in-class performance, be sure to go with Wilwood GT Series Drag hats.
