DIAMOND 4.500" bore, 4.500" stroke, 7.100" rod length, +65cc dome volume 572 Hemi Dome Top Forged Pistons With Rings D52570-8 Autofit

572 Hemi Dome Top Forged Pistons With Rings D52570-8

DP25708 - OIL FILTER MOUNT, 3/4"-16
SKU D52570-8
by DIAMOND
Sold out
$3,135.22 +GST
$3,135.22 +GST - $3,135.22 +GST
$3,135.22 +GST
$2,916.03 +GST
$2,916.03 +GST - $2,916.03 +GST
$2,916.03 +GST
$3353.4345 Including GST (NZ Customers only)
Availability:
Out of stock

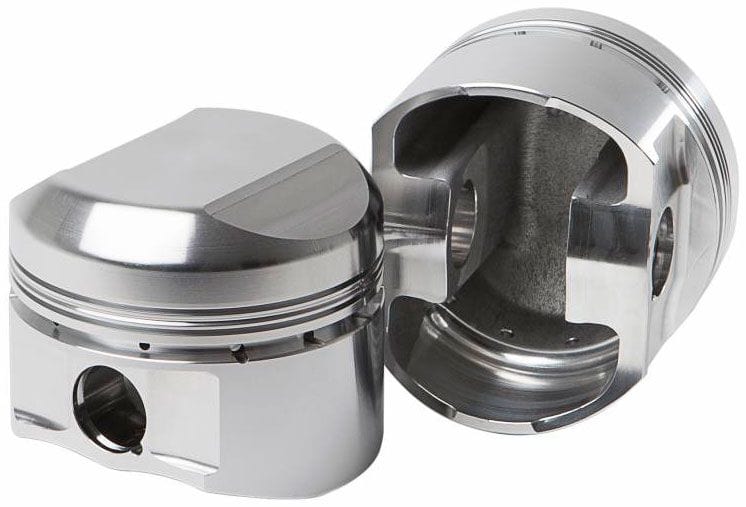

572 Hemi Dome Top Forged Pistons With Rings

4.500" bore, 4.500" stroke, 7.100" rod length, +65cc dome volume

D52570-8

2570-8

3D milling on piston crowns for ready to install finish Designed to work with most oem open and closed chamber cylinder heads Top ring down dimension: .240" Ratios figured for .040 head gasket @ 10.720 Deck Standard 1/16 x 1/16 x 3/16 ring package Premium 8620 .155W wrist pins included Valve pocket depth: 0.225" intake and .191" exhaust Will work with up to a intake valve size of 2.190" and exhaust valve size of 1.880" Made from 4032 alloy
