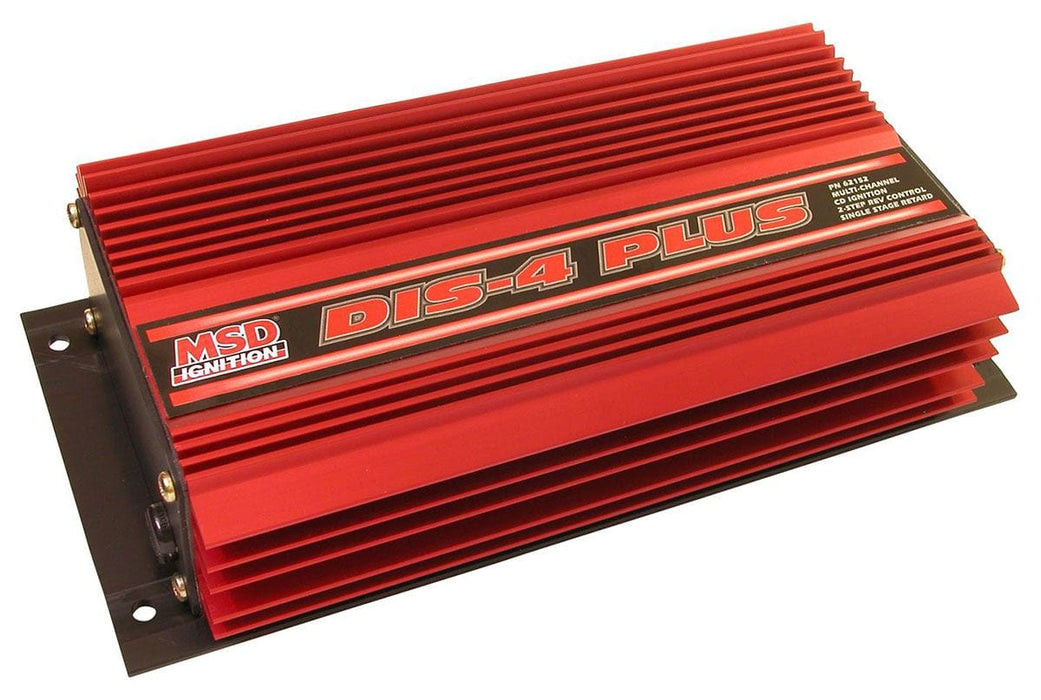

DIS-4 Plus Digital Ignition

Designed for 6 & 8 Cyl with 2, 3 or 4 coil packs, Capacitive Discharge

MSD62152

D62152

Features are now adjustable with rotary switches. Step Retard. Two Step Rev Control. LED Monitor. MSD DIS Ignition Controls are designed for engines with coil pack, waste spark ignition systems. The DIS-4 has four channels, to fire up to four coil packs (or even four individual coils). Each Control delivers full power Capacitive Discharge sparks from idle through racing rpm. Below 3,000 rpm there is a series of multiple sparks that last for up to 20 degrees of crankshaft rotation to improve idle, starting and throttle response. The adjustable features of the DIS Ignitions have also been upgraded with rotary dials. These provide easier, and more precise adjustments of the over rev limiter and the holeshot rev limit. Also, there is now a step retard that can be wired directly to a nitrous system or switch for activation! Operating S Spark Energy : 105 - 115 millijoules/Spark Primary Voltage: 460 - 480 Volts Secondary Voltage: 40,000 Volts Spark Series Duration : 20 degrees Crankshaft Rotation RPM Range: 14,000 RPM with 14.4 Volts Voltage Required: 10 - 18 Volts, Negative Ground Current Draw DIS-4: 6.6 Amps at 10,000 RPM Weight and Size: 4.5 lbs., 9.5"L x 4.5"W x 2.2"H
