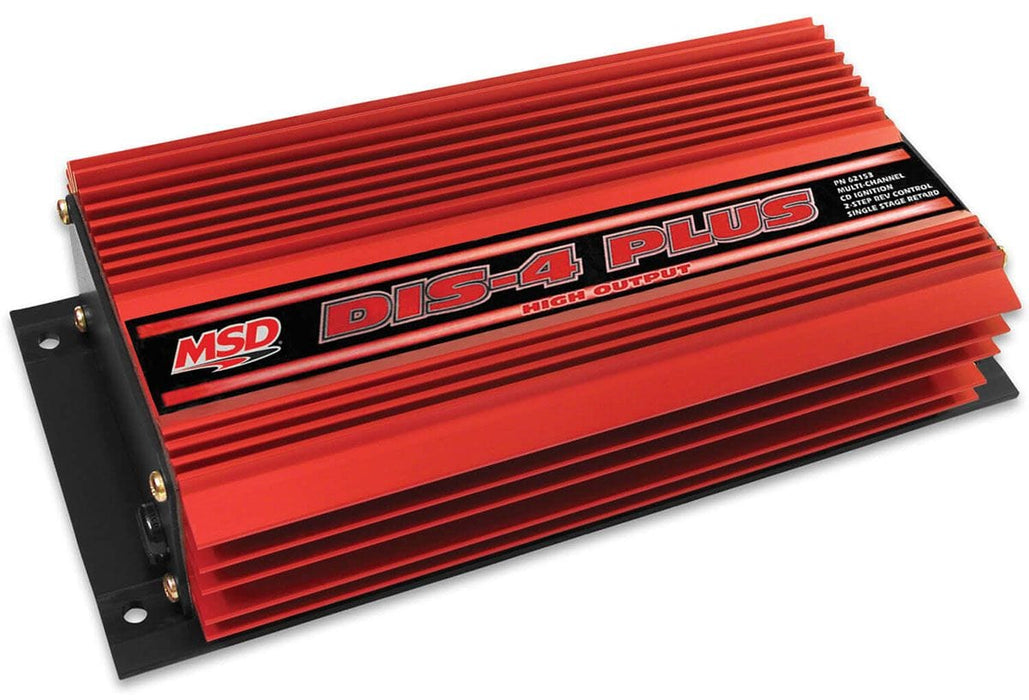

MSD Designed for 6 & 8 Cylinder Engines with 2, 3 or 4 coil packs DIS-4 Plus High Output Digital Ignition MSD62153 Autofit

DIS-4 Plus High Output Digital Ignition MSD62153

MSD62153 - DIS-4 HO PLUS IGN. CONTROL
SKU MSD62153
by MSD
$2,788.28 +GST - $2,788.28 +GST
$2,788.28 +GST
$2,788.28 +GST
$2,788.28 +GST - $2,788.28 +GST
$2,788.28 +GST
$3206.522 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped
DIS-4 Plus High Output Digital Ignition

Designed for 6 & 8 Cylinder Engines with 2, 3 or 4 coil packs

MSD62153

D62153

The DIS Ignitions all deliver a stout, CD spark that is capable of burning the majority of air/fuel mixtures. There are of course exceptions, such as full bred race engines running high boost pressures from turbos, blowers or nitrous. To answer these needs, MSD offer a Higher Output version of the DIS Ignition Controls. The DIS Plus HO Ignitions produce an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mix­tures even under extreme cylinder pressures. The DIS-HO boxes are not CARB approved and are designed for drag racing applications only. Features Two adjustable Rev Limits Diagnostic LED Adjustable retard stage Ignition Interrupt Circuit Operating Specifications: Spark Energy: 170 mJ/spark Primary Voltage: 470 Volts Secondary Voltage: 43,000 Volts Spark Series Duration: 20 degree Crankshaft Rotation RPM Range: 14,000 RPM with 14.4 Volts Voltage Required: 10-18 Volts, Negative Ground Current Draw: 10 Amps at 10,000 RPM Weight and Size: 3 lbs. 9.5"L x 4.5"W x 2.2"H
