ACT Mod-Twin 225 Xtreme Twin-Disc Clutch Kits T2S-S05
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: T2S-S05
Part Type: Clutch Kits
Product Line: ACT Mod-Twin 225 Xtreme Twin-Disc Clutch Kits
Automotive Fittings Part Number: ACL-T2S-S05
UPC: 842385025298
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 24
Input Shaft Diameter: 1.000 in.
Disc Diameter (in.): 8.800 in.
Disc Diameter (mm): 225mm
Disc Material: Organic
Disc Style: Full face
Hub Style: Sprung
Pressure Plate Style: Diaphragm
Throwout Bearing Included: Yes
Alignment Tool Included: Yes
Pilot Bushing Included: Yes
Flywheel Material: Forged steel
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: SFI certified 1.2.
Description:
ACT Mod-Twin 225 Xtreme twin-disc clutch kits will provide aggressive launches and rapid shifting of high powered AWD's--by combining twice the ceramic friction surfaces with a no-nonsense solid mono-drive hub in a completely modular design. Each diaphragm spring endures an exclusive 4-stage heat treating process to provide a consistent light pedal feel. The puck-style friction plates with high-quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These friction plates uniformly transfer torque to a mono-drive chromoly hub which is heat-treated for strength and durability, extending input shaft life with one continuous spline. The lightweight, rigid design of these clutch kits allows for quicker shifts and lasting trouble-free service. Different styles and other options are available for vehicle fitment from 2003 and up.
Features and benefits:
* Recommended for drag, road, or rally racing use
* Predictable aggressive engagement, light pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise
* Forged aluminum cover, mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions
* Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances
* 100 percent clamp load tested, balanced and SFI certified

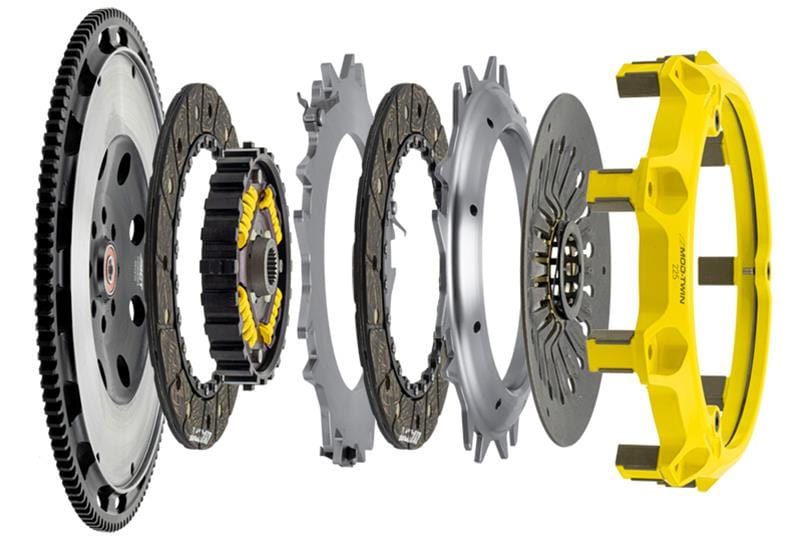

Kit contents:
* Forged aluminum pressure-plate cover
* CNC-machined and dynamically balanced flywheel
* Diaphragm spring and face
* Puck-style ceramic friction plates
* Available with sprung or rigid mono-drive hub assembly
* Floater
* Patented mono-Loc collar
* Release bearing
* Alignment tool and pilot bearing (if needed)
Note: Mod-Twin clutches are fully rebuildable and most components can also be ordered separately, if you do not need to purchase complete kit.
