ACT Xtreme Triple-Disc Race Clutch Kits T2R3-T01
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: T2R3-T01
Part Type: Clutch Kits
Product Line: ACT Xtreme Triple-Disc Race Clutch Kits
Automotive Fittings Part Number: ACL-T2R3-T01
UPC: 00842385002237
Clutch Usage: Performance
Clutch Disc Quantity: 3
Flywheel Included: Yes
Input Spline Quantity: 26
Input Shaft Diameter: 1.125 in.
Disc Diameter (in.): 7.250 in.
Disc Diameter (mm): 184mm
Disc Material: Sintered iron
Disc Style: Full face
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Chromoly
Ring Gear Tooth Quantity: 115-tooth
Flywheel Bolt Quantity: 8
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing #61-400. Flywheel bolts included.
Description:
Carefully engineered, precisely assembled, and accurately balanced, the ACT Xtreme triple-disc race clutch kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. The sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All kits undergo an exclusive 4-stage, heat-treating process on all diaphragms. The ACT triple-disc kit delivers moderate to heavy pedal effort, predictable, quick engagement, quick throttle response, and increased gear rattle. Order the kit recommended for your specific vehicle and engine size.
Features and benefits:

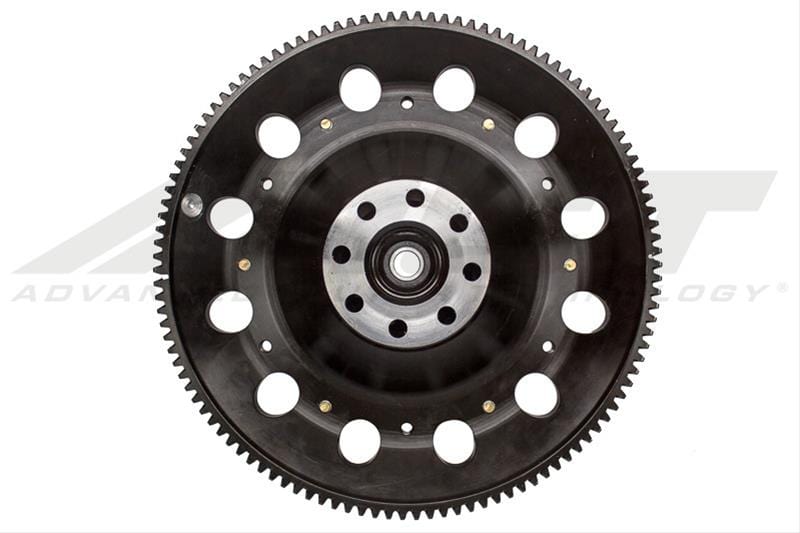

* CNC-machined and dynamically balanced flywheel

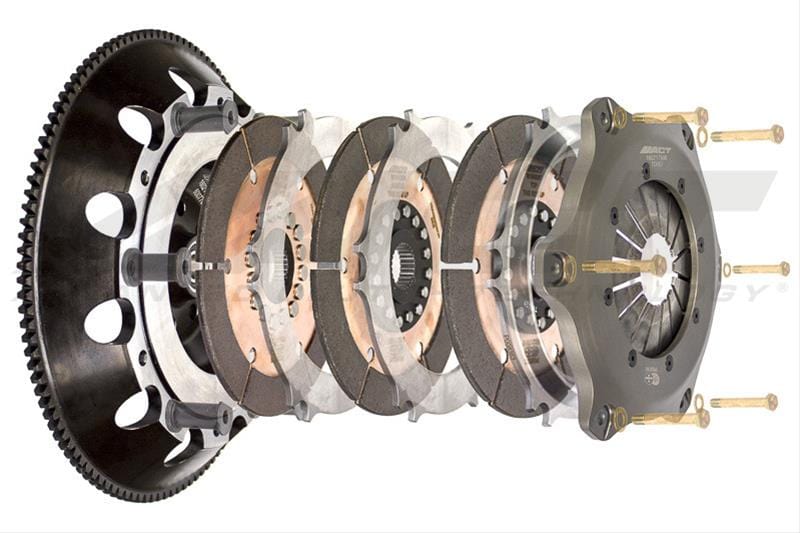

* Includes a pressure plate, three discs, two floater, and alignment tool
* Trouble-free installation and operation
* Recommended for high horsepower race use only, not intended for street
* Meets SFI Specification 1.2
