AFR 195cc SBC Eliminator LT Cylinder Heads 1032NP
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1032NP
Part Type: Cylinder Heads
Product Line: AFR 195cc SBC Eliminator LT Cylinder Heads
Automotive Fittings Part Number: AFR-1032NP
Combustion Chamber Volume (cc): 54
Intake Runner Volume (cc): 195cc
Exhaust Runner Volume (cc): 64cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.050 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Description:

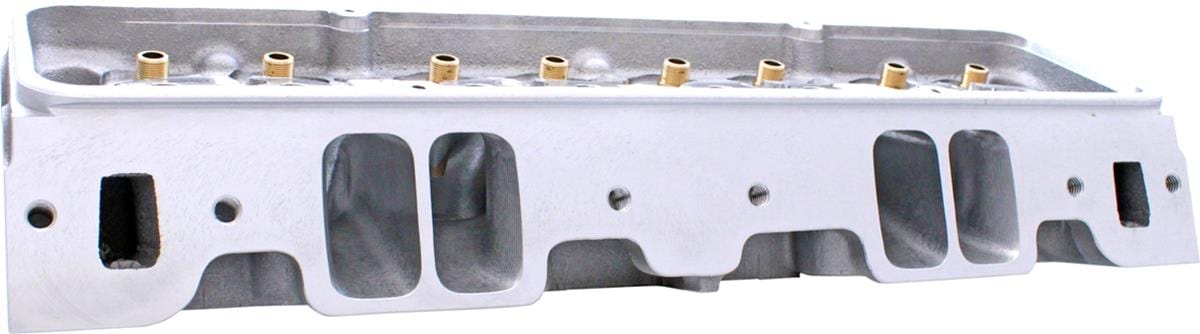

AFR 195cc SBC Eliminator LT 23 degree cylinder heads feature100 percent CNC-ported intakes, exhausts, and chambers, as well as A356 aluminum castings and high-quality components throughout. They are emissions-legal (CARB E.O. #D-250-2 for engines up to 1994). These LT1/LT4 heads are designed for the Gen II reversed-cooled SBC engines from 1992-97, and are machined to accept both center bolt and perimeter bolt valve covers. Their excellent build and flow characteristics are recommended for displacements up to 400 cu. in. with an operating range up to 6500 rpm (6,500 – 6,800 rpm for the Competition heads).
AFR 195cc SBC Eliminator LT heads typically include:
* 8mm bead lock intake and exhaust valves
* Hydraulic dual valve spring
* 7 degree chromoly retainers
* 7 degree bead lock valve keepers
* ARP rocker studs
* Adjustable 5/16 in. guide plates
* Viton valve seals
* Hardened valve spring
* Ductile iron intake and exhaust valve seats
* 8mm bronze valve guides
