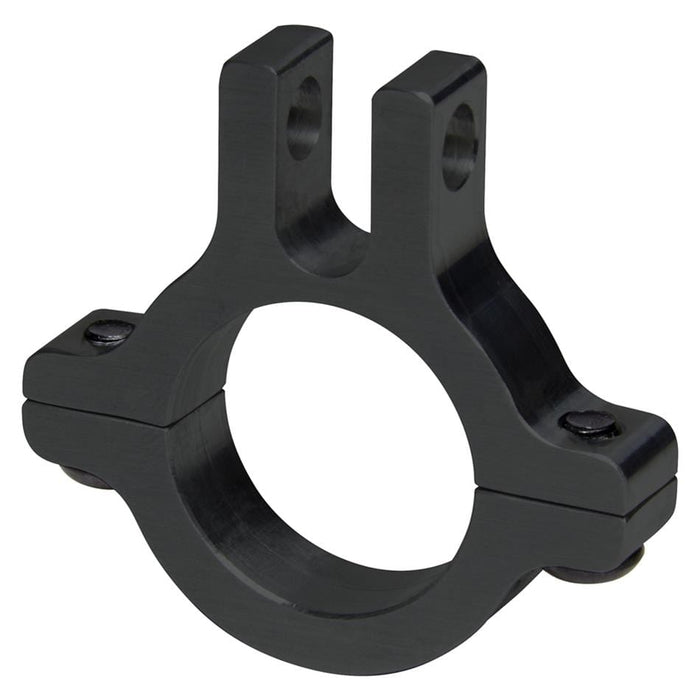

Allstar Performance Suspension Limiters ALL68341
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: ALL68341
Part Type: Suspension Travel Limiters
Product Line: Allstar Performance Suspension Limiters
Automotive Fittings Part Number: AAF-ALL68341
UPC: 848238084801
Limiter Type: Front-end bolt on
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Welding Required: No
Quantity: Sold individually.
Notes: Designed for 1.125 in. tubing for mounting.
Travel Limiter Quantity: 1
Application Notes: Designed for 1.125 in. tubing for mounting.
Description:
Allstar Performance suspension limiters are available in single-bushing, double-bushing, and chain kit designs. Single-bushing limiters are used at the rear of the chassis to limit travel during acceleration "hike up" and control roll steer. Double-bushing limiters are used on the lift bar to control lift bar travel on deceleration. Both types absorb shock and help reduce tire unloading. Top plates are drilled to accept a 1/2 in. rod end for use with a shock mount, or to attach a weight jack bolt with 7/16 in.-20 internal threads. They include a clevis with a 3/8 in. hole for attachment of a chain or cable.
Chain kit-style suspension limiters are also used to limit rear suspension or lift bar travel. The 3/16 x 18 in. long chain (can be cut to length) accepts a 3/8 in. bolt or pin, but may be modified to accept up to a 1/2 in. bolt. The included heat shrink sleeve installs over the chain to keep the chain in position and prevent binding.
