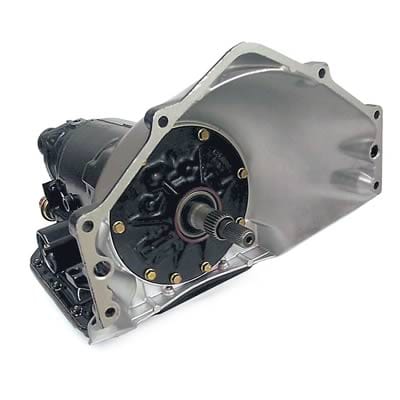

ATI TH350 Transmissions ATI351200
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: ATI351200
Part Type: Automatic Transmissions
Product Line: ATI TH350 Transmissions
Automotive Fittings Part Number: ATI-351200
UPC: 800157000195
Number of Gears: 3
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 400
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: No
Lockup Compatible: No
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Black
Tailshaft Length (in.): 6.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Hardened steel
First Gear Ratio (Automatic Transmissions): 2.52
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually.
Description:
ATI TH350 transmissions are durable and effective high performance 3-speed transmissions.
Modifications and options include:
* Fully blueprinted and equipped with high-flow lube circuits, increased torque capacity, and hard chrome oil rings
* Sprags replaced with heavy-duty units
* Clutch packs are assembled for individual applications
* Compu-Flow valve body standard
* Special low-gear sets for increased launch capability
* Lightweight options available to upgrade the transmission
