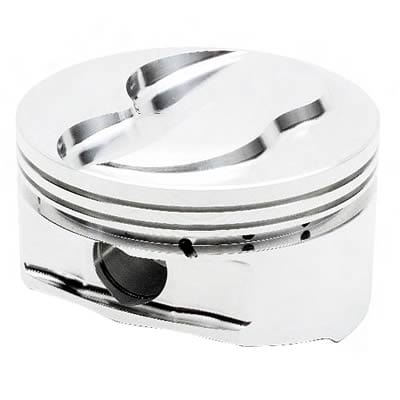

JE Pistons 15 Degree LS1 Series Pistons 194881S
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 194881S
Part Type: Pistons
Product Line: JE Pistons 15 Degree LS1 Series Pistons
Automotive Fittings Part Number: JEP-194881-1
UPC: 193564208880
Piston Rings Included: No
Bore (in.): 3.905 in.
Bore (mm): 99.187mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Rod Length: 6.200 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.050 in.
Piston Head Volume (cc): +2.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.50mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Oil rail support included.
Description:
JE Pistons 15 degree LS1 series pistons are designed for stock rods (.945 in. diameter wrist pin) or aftermarket/small block Chevy (.927 in. diameter wrist pin) connecting rods. They have a flat top design that achieves compression ratios suitable for normally aspired applications and are machined for 1.5, 1.5, 3.0mm rings.
