Link ECU Link ECU Link CANJST - CAN Connection Cable for Plugin ECU's (5pin) Autofit

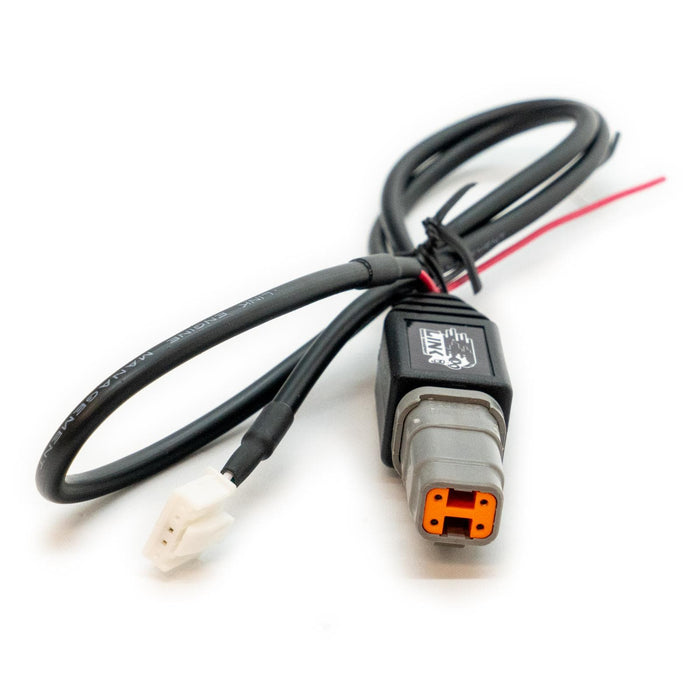

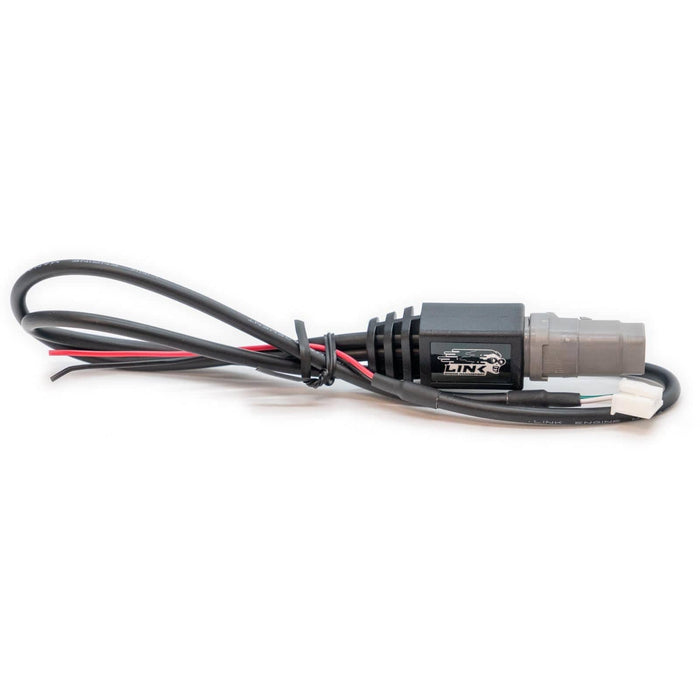

Link CANJST - CAN Connection Cable for Plugin ECU's (5pin)

SKU LINK101-0197
by Link ECU
$53.00 - $53.00
$53.00
$53.00
$53.00 - $53.00
$53.00

Part Number: 101-0197

Used to add CAN communications to G4+/G4X Plugin ECU’s which have a 5 Pin CAN connector. Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable ( CANEXT) and CAN Splitter Cable (CANTEE) Not compatible with the below PlugIns (these require a CANJST4 Cable): 233-4000 - PlugIn ECU G4X Honda S2000 AP1 228-4000 - PlugIn ECU G4X Subaru WRX V5-6 237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX 238-4000 - Plugin ECU G4X Subaru WRX11 239-4000 - Plugin ECU G4X MX5NB2X 240-4000 - Plugin ECU G4X MX5NB1X Specs DTM4 Male to JST4. 12V and GND Terminated to JST5. Length 300mm DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
