MSD Relay Modules 7566-4
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 7566-4
Part Type: Relays
Product Line: MSD Relay Modules
Automotive Fittings Part Number: MSD-7566-4
UPC: 090127297049
Amperage Rating: 40 amps
Volts: 7-20 V
Pole: Four
Terminal Type: Screw
Wiring Harness Included: No
Quantity: Sold individually.

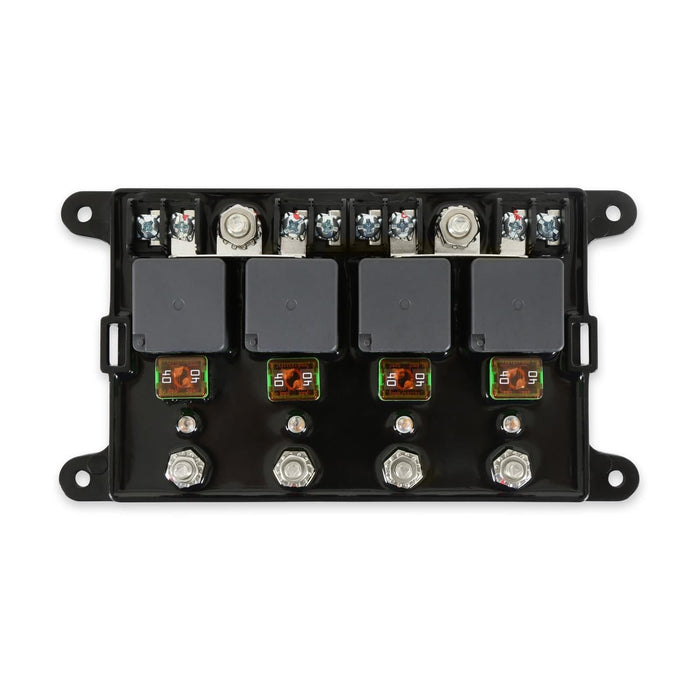

Notes: This is a four channel relay. This relay contains low profile jcase fuses and a LED status indicator.
Description:
MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. The relay housing comes with a labeled lid that snaps into place providing a clean installation and protecting the main power stud and triggers from contamination or accidental contact. MSD offers these relay modules with different channel outputs, select the model that's designed to meet your application needs.
Features include:
* 7 V to 20 V supply to fit a wide variety of applications
* Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
* Configurable single-wire activation with Ground (-) input or 12 V (+) input, with removal of the Tie-Bar

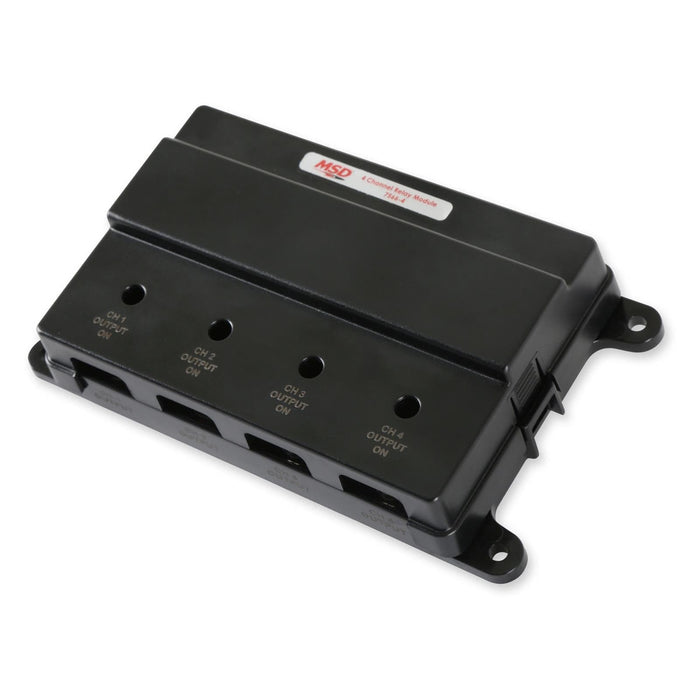

* Removable cover for easy accessibility
* Low-profile JCASE fuses provide ample protection in case of a short
* LED status indicators, show you which channel is triggered at a glance
