Wilwood AERO4 Big Brake Rear Brake Kits 140-10943-R
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-10943-R
Part Type: Disc Brake Kits
Product Line: Wilwood AERO4 Big Brake Rear Brake Kits
Automotive Fittings Part Number: WIL-140-10943-R
UPC: 889545010954
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 2.810 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Designed for OEM C-clip axles only. Does not support special end or C-clip eliminator.
Description:

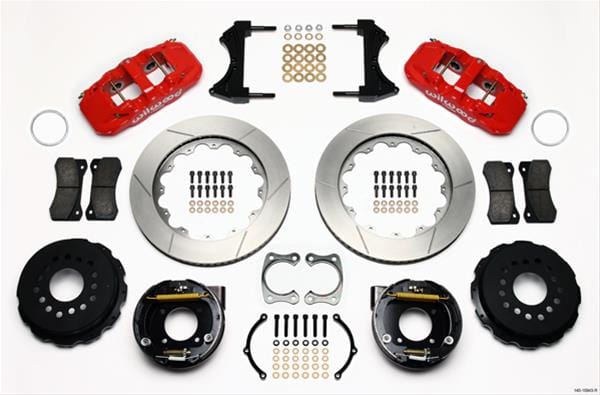

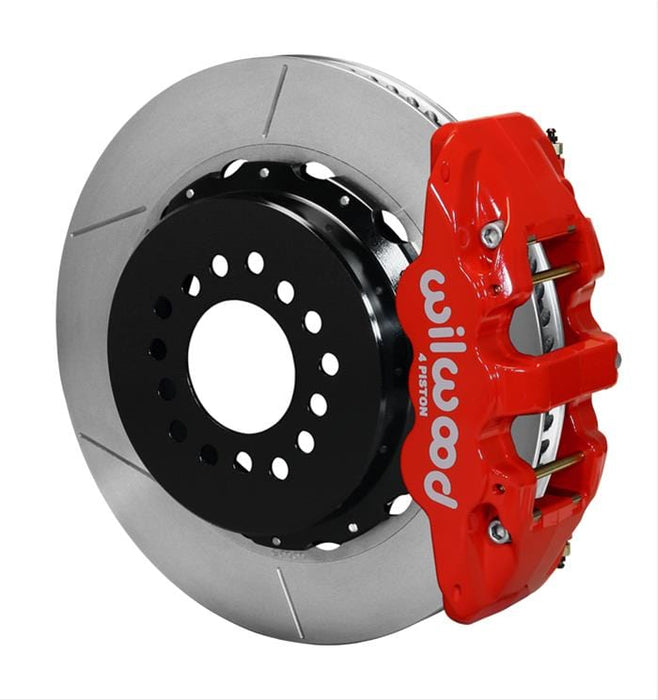

Maximize your braking power with AERO4 radial rear disc kits from Wilwood! They provide the ultimate Big Brake solution for muscle car rear axles that require a parking brake. The 4-piston calipers, 2-piece rotors, and high performance BP-10 compound pads deliver both optimized and balanced braking to complement front big brake upgrades on all types of custom, show, and high performance street machines. Plus, the neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs are offered to further personalize style and performance for every application. Order the Wilwood AERO4 Big Brake rear brake kit designed for fitment with your axle and wheel bolt pattern.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
