Wilwood AERO6 Carbon Ceramic Big Brake Kits 140-13145-CSIC
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-13145-CSIC
Part Type: Disc Brake Kits
Product Line: Wilwood AERO6 Carbon Ceramic Big Brake Kits
Automotive Fittings Part Number: WIL-14013145CSIC
UPC: 889545018929
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.00 in./355.60mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: Poly-carbon matrix
Parking Brake Provision: No

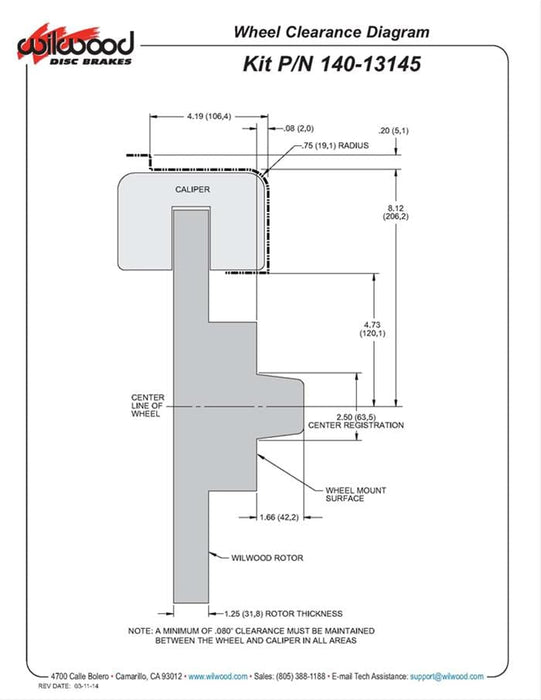

Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 0.680 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Use with Art Morrison 9999AME GT sport chassis with Wilwood Pro spindle, Roadster Shop Spec Chassis 2016-9999, or Wilwood Pro Spindle (standard height to 2 in. drop).
Description:

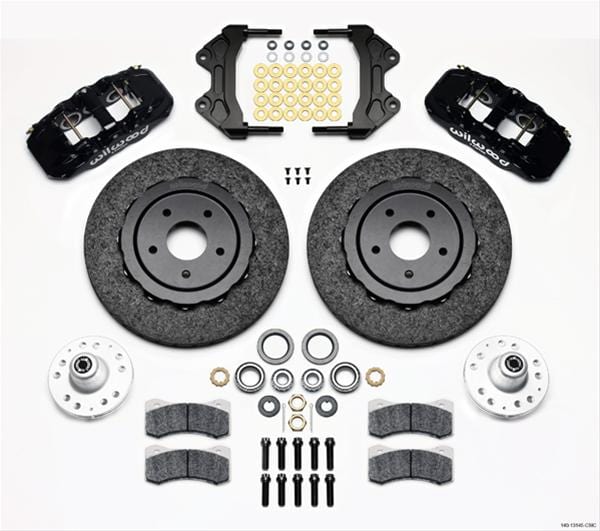

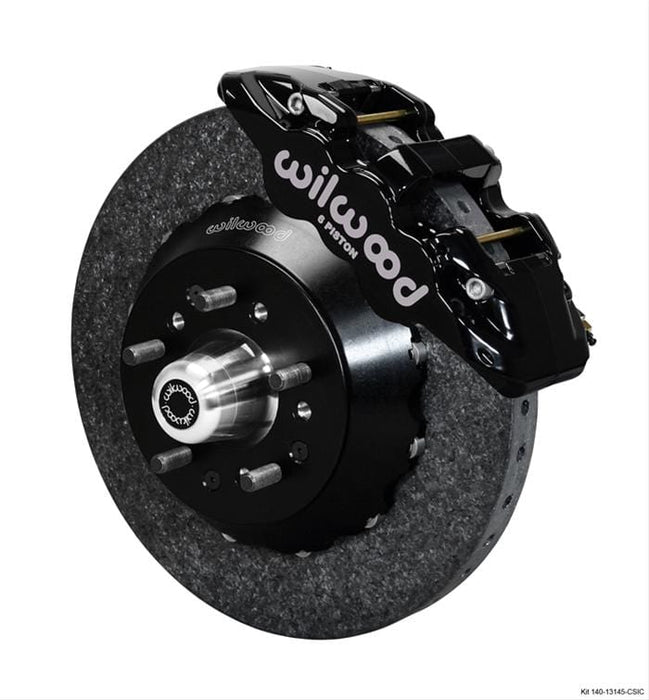

Wilwood AERO6 Carbon Ceramic Big Brake Kits offer an extreme performance upgrade, featuring WCCB Carbon Ceramic Dynamic Mount Rotors with Wilwood's exclusive Bobbin Mounting System. AERO6 kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. AERO6 calipers are a competition proven and offer fully detail machined forged caliper bodies for superior strength and resistance to deflection and separation under high load.
Black or red powdercoat calipers are available as options. The 14.00 in. WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon Ceramic, fused dynamically with Wilwood's proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight. They've been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. Order the rotors recommended for your vehicle.
