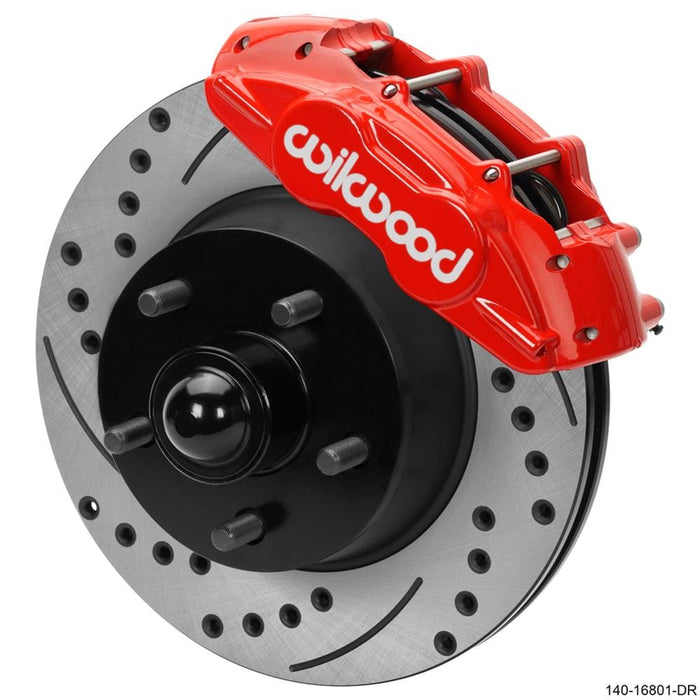

Wilwood Classic Series D11 Caliper Front Brake Kits 140-16801-DR
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-16801-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Classic Series D11 Caliper Front Brake Kits
Automotive Fittings Part Number: WIL-140-16801-DR
Position: Front
Disc Brake Kit Type: Medium-duty
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled/Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 11.29 in./286.70mm
Front Rotor Thickness (in.): 0.94 in.
Brake Rotor Bolt Pattern (in.): 5 x 4.50 in.
Brake Rotor Bolt Pattern (mm): 5 x 114.30mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Aluminum
Front Caliper Color: Red
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: ProMatrix
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 14 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Notes: Fits models with factory disc brake spindles only.
Description:
Wilwood Classic Series D11 caliper front brake kits are upgrade solutions for your classic Ford or Mercury OEM disc spindles.
These kits feature the D11 4-piston forged aluminum calipers and 11.80 in. diameter one-piece cast iron rotors with integrated hubs to simplify installation while providing superb dimensional stability and wear resistance. The D11 calipers mount in the stock location over stock rotors, use the original style D11 brake pads, and fit snugly inside most 65 or newer production wheels. Wilwood kits contain DOT-compliant stainless braided brake lines, Promatrix compound pads, drilled and slotted or solid rotors, powdercoated red or black calipers, and necessary hardware.
