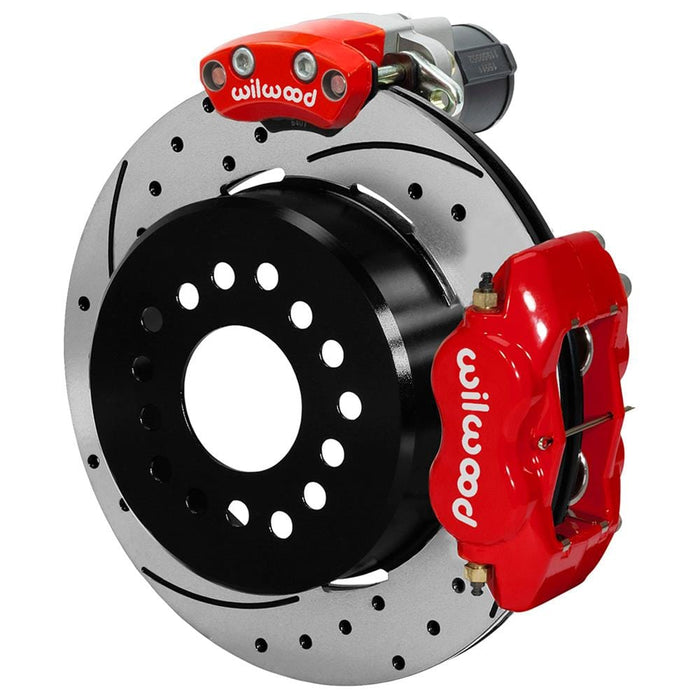

Wilwood Forged Dynalite Rear Electronic Parking Brake Kits 140-16154-DR
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-16154-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Rear Electronic Parking Brake Kits
Automotive Fittings Part Number: WIL-140-16154-DR
UPC: 889545097504
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Ford 9 in.
Axle Housing Flange Style: Small Ford (3.336 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Electric caliper
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 2.660 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Description:

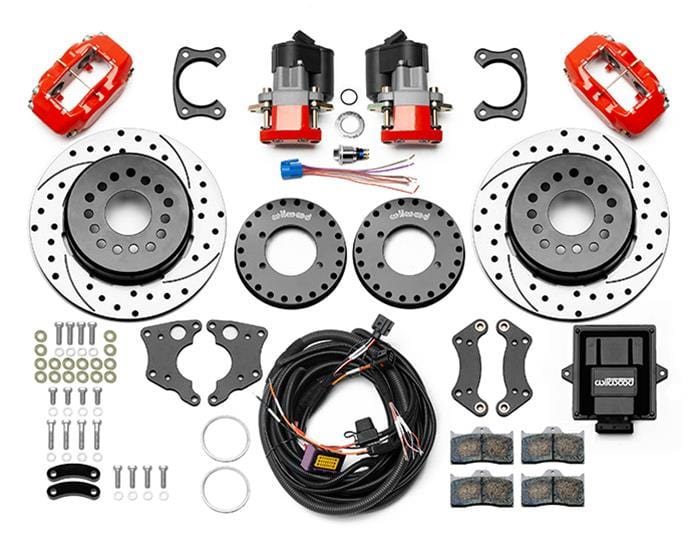

Wilwood Forged Dynalite rear electronic parking brake kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite four piston calipers, 12.19 in. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique electronic parking brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable builders to personalize the style and optimize brake performance for every individual application.
