Wilwood Forged Narrow DynaPro Big Brake Front Brake Kits 140-17363
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-17363
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow DynaPro Big Brake Front Brake Kits
Automotive Fittings Part Number: WIL-140-17363
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 11.00 in./279.40mm
Front Rotor Thickness (in.): 0.81 in.
Brake Rotor Bolt Pattern (in.): 4 x 3.93 in.
Brake Rotor Bolt Pattern (mm): 4 x 100.00mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Description:

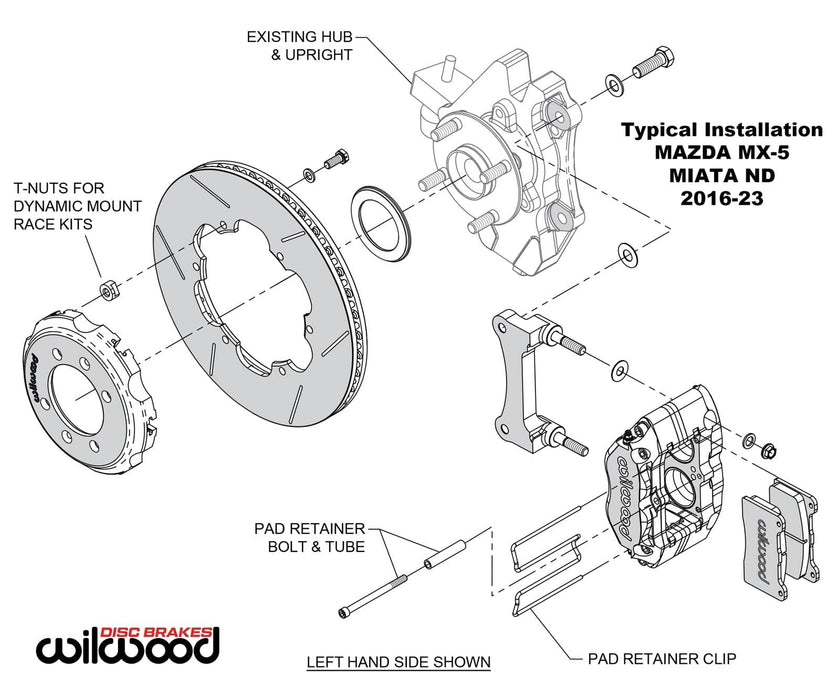

Radial mounting provides secure and accurate installation of Wilwood forged billet DynaPro 4-piston calipers with large diameter rotors for select front and all-wheel-drive sport compacts, such as late model Mazdas and Fiats. These Big Brake front kits are the perfect complement to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Kits are engineered for each specific vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper powdercoat finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance. Order the disc brake kit recommended for your vehicle.
Additional details:

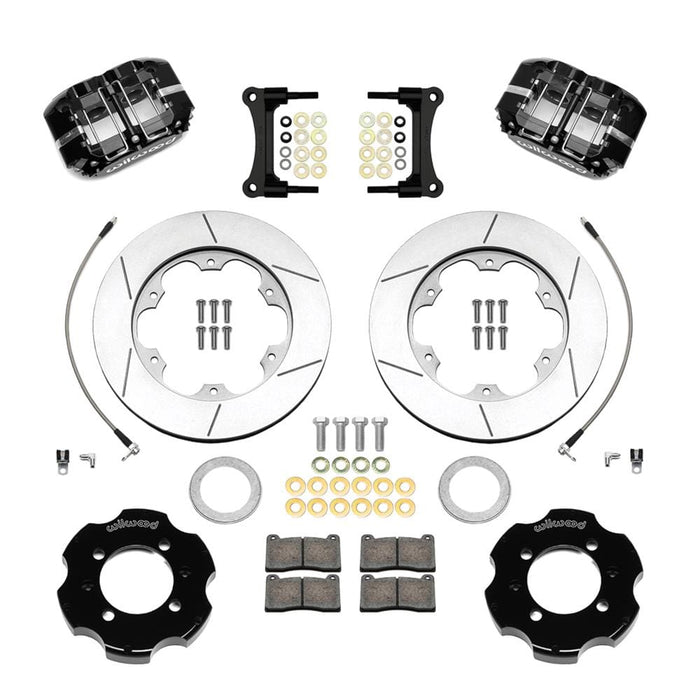

* Proprietary Spec-37 iron material (rotors)
* 11 in. diameter GT 36 slotted, directional vane rotors
* Billet aluminum calipers
* Lightweight aluminum hats
* High temperature, fluid, and abrasion-resistant Type III anodized finish on Narrow DynaPro calipers
* BP-10 or BP-40 (high-temperature) brake pads, depending on kit
