Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kits 140-12871-D
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-12871-D
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kits
Automotive Fittings Part Number: WIL-140-12871-D
UPC: 889545017700
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Dual 5 x 3.93 in./5 x 4.50 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 100.00mm/5 x 114.30mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Description:

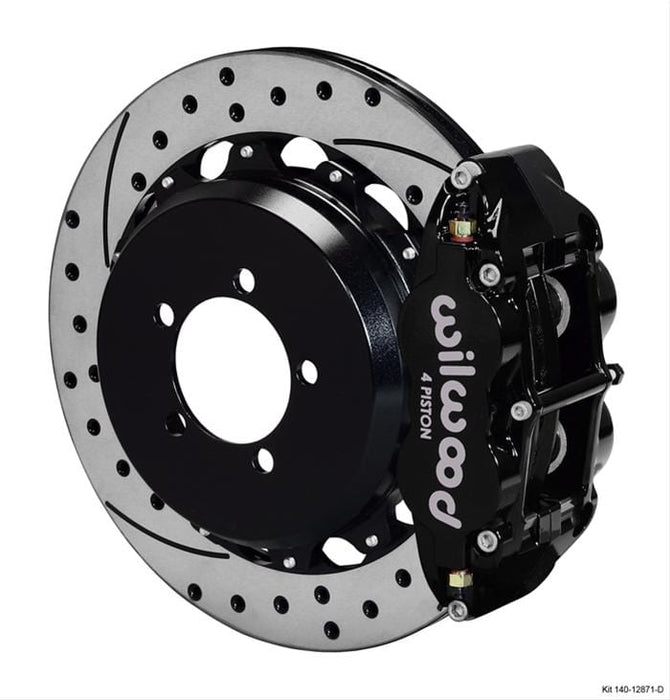

Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high-efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are championship-proven systems.
Features and benefits:

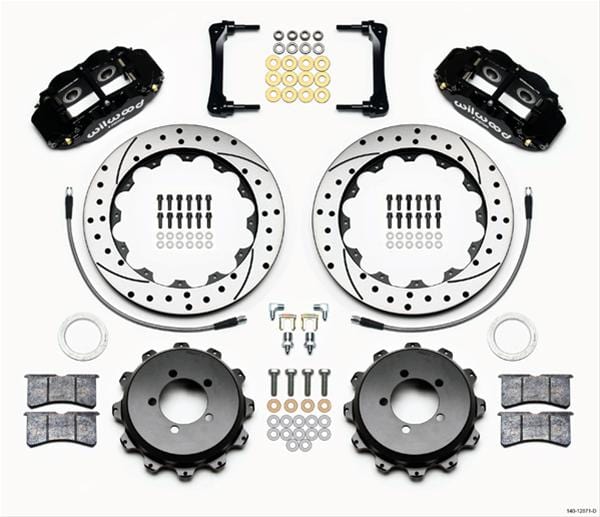

* FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish that provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout
* Thermlock pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals
* Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish
* Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls
* Calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders.
* Spec 37 alloy GT Series directional vane 13 in. rotors are dynamically mounted using Wilwood Dynamic Lug Mounting system to forged aluminum hats
* Hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces
* Mounting brackets include all premium grade fasteners and secure the calipers to the uprights in the stock location with no modifications required
* High-temperature, high-friction, race compound pads selected specifically by application
