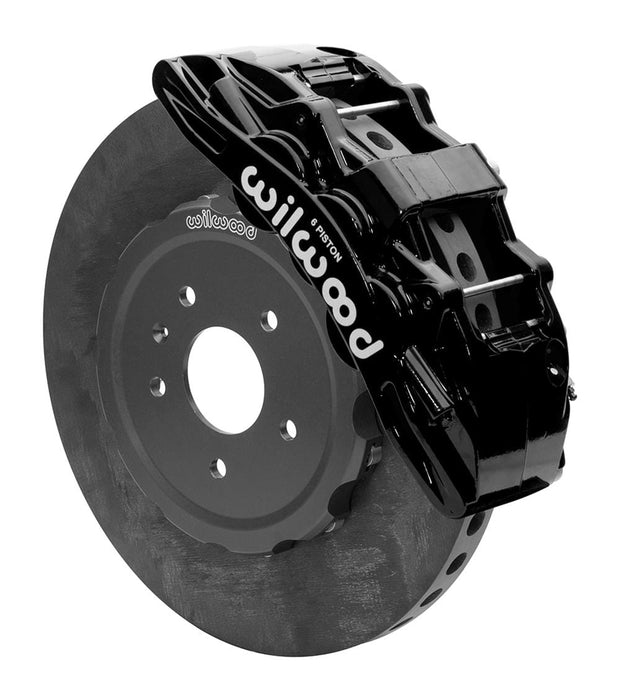

Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kits 140-15746-CSIC
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-15746-CSIC
Part Type: Disc Brake Kits
Product Line: Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kits
Automotive Fittings Part Number: WIL-14015746CSIC
UPC: 00889545092042
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Vented
Front Rotor Diameter: 15.00 in./381.00mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: No
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: Poly-carbon matrix
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 19 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Description:
Wilwood SX6R front brake kits deliver an extreme performance upgrade—featuring WCCB carbon-ceramic dynamic mount rotors with the exclusive Bobbin Mounting System. They're engineered to maximize braking capacity inside custom wheels. These Big Brake kits offer a simple bolt-on installation, with minor modifications required to the front spindle only, and are fully compatible with ABS and OE master cylinder output.
SX6R calipers were designed specifically to provide high-capacity braking with large diameter rotors for extreme-duty and race vehicles. It's the largest dual-purpose caliper Wilwood has produced, assuring big brake performance for street and track vehicles. Kits are available with caliper color options; check fitment on the Application tab.
