Wilwood UTV6 Race Brake Kits 140-17038
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-17038
Part Type: Disc Brake Kits
Product Line: Wilwood UTV6 Race Brake Kits
Automotive Fittings Part Number: WIL-140-17038
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Solid
Front Rotor Diameter: 11.25 in./285.80mm
Front Rotor Thickness (in.): 0.25 in.
Brake Rotor Bolt Pattern (in.): 4 x 5.92 in.
Brake Rotor Bolt Pattern (mm): 4 x 150.47mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Gray/Silver
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: PolyMatrix E
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 14 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Brake kit includes PolyMatrix E compound pads.
Description:

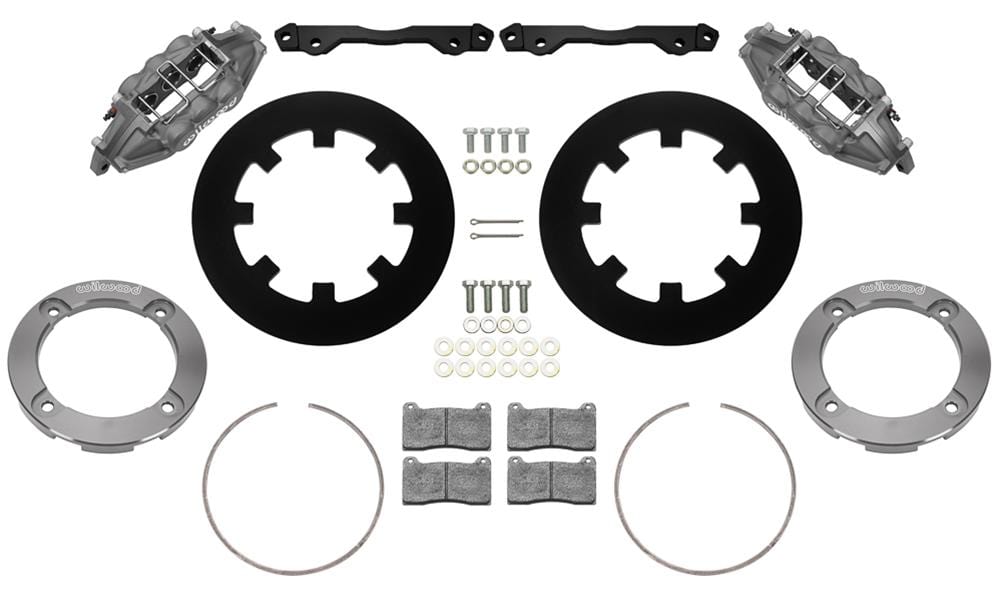

Wilwood UTV6 Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed-mount multi-piston calipers with greater clamping force, BP-20 (high-friction) brake pads, and larger diameter floating rotors for more brake torque—improving braking on higher-powered UTVs. Forged aluminum differential-bore 4- and 6-piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors are up to 20 percent greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain. Order the kit designed to fit your UTV.
