ACT Triple Disc Heavy-Duty/SI Race Clutch Kits T1R3-T01
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: T1R3-T01
Part Type: Clutch Kits
Product Line: ACT Triple Disc Heavy-Duty/SI Race Clutch Kits
Automotive Fittings Part Number: ACL-T1R3-T01
UPC: 00842385001988
Clutch Usage: Performance
Clutch Disc Quantity: 3
Flywheel Included: Yes
Input Spline Quantity: 26
Input Shaft Diameter: 1.125 in.
Disc Diameter (in.): 7.250 in.
Disc Diameter (mm): 184mm
Disc Material: Sintered iron
Disc Style: Full face
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Chromoly
Ring Gear Tooth Quantity: 115-tooth
Flywheel Bolt Quantity: 8
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing #61-400. Flywheel bolts included.
Description:

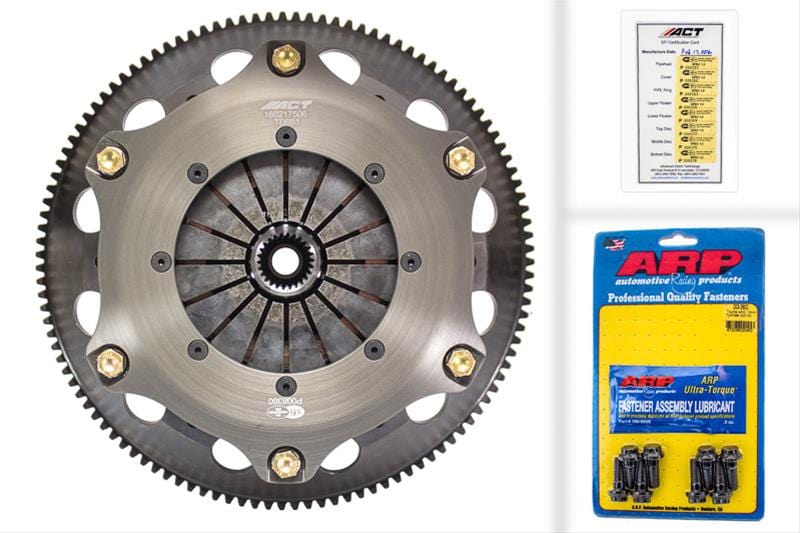

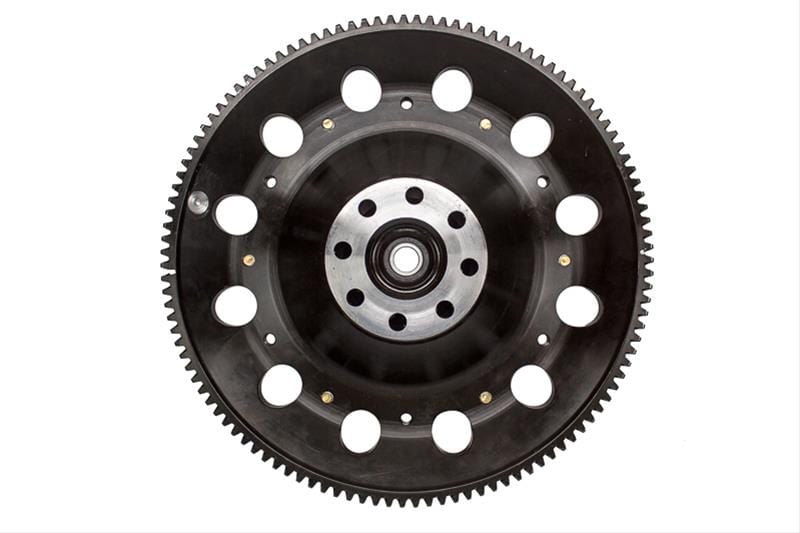

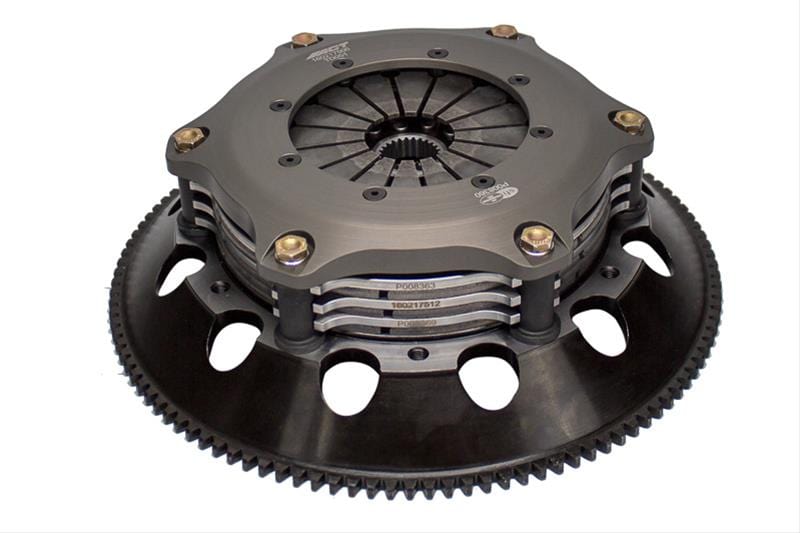

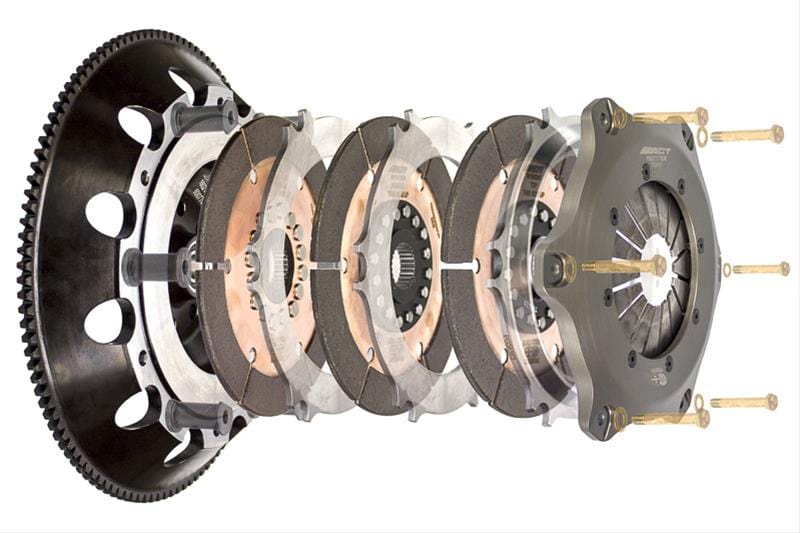

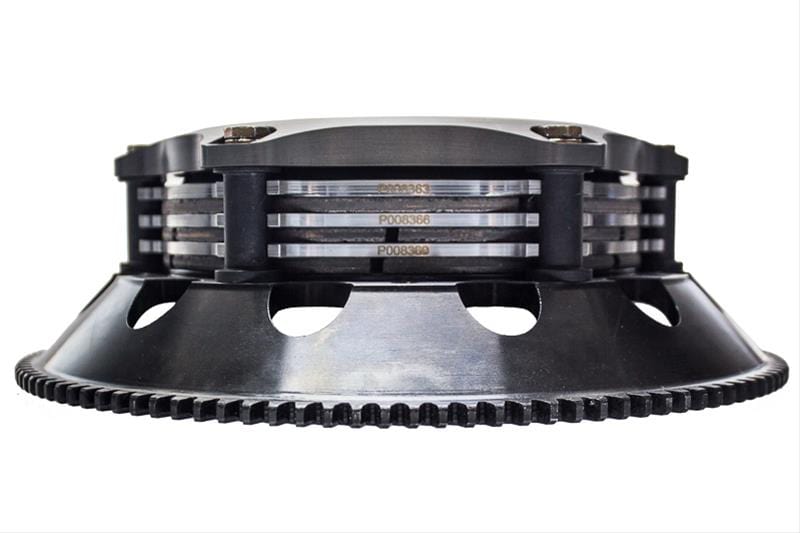

ACT triple disc heavy-duty/SI race clutch kits are for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. These HD/SI kits feature sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. They include a CNC-machined and dynamically balanced flywheel for trouble-free use, and all kits undergo an exclusive 4-stage, heat-treating process on all diaphragms. These ACT triple disc race kits meet SFI Specification 1.2, and include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. Order the kit recommended for your specific vehicle and engine size.
Additional notes:
* Light to moderate pedal effort, predictable, quick engagement, quick throttle response, increased gear rattle
* ACT's exclusive diaphragm, hardened posts, and high-heat capacity offers long life under severe abuse, while the rigid design may increase spline wear
* Carefully engineered, precisely assembled, accurately balanced, chromoly hub is heat-treated for strength and durability
* Recommended for high-horsepower race use only, not intended for street
* 100 percent clamp load tested and dynamically computer balanced for smooth, high-rpm reliability
