AFR 185cc SBF Renegade 20 Degree Street Heads 1387
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1387
Part Type: Cylinder Heads
Product Line: AFR 185cc SBF Renegade 20 Degree Street Heads
Automotive Fittings Part Number: AFR-1387
Combustion Chamber Volume (cc): 72
Intake Runner Volume (cc): 185cc
Exhaust Runner Volume (cc): 68cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.600 in.
Camshaft Style: Hydraulic roller
Outside Diameter of Outer Spring (in.): 1.290 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: These cylinder heads are competition ported.
Description:

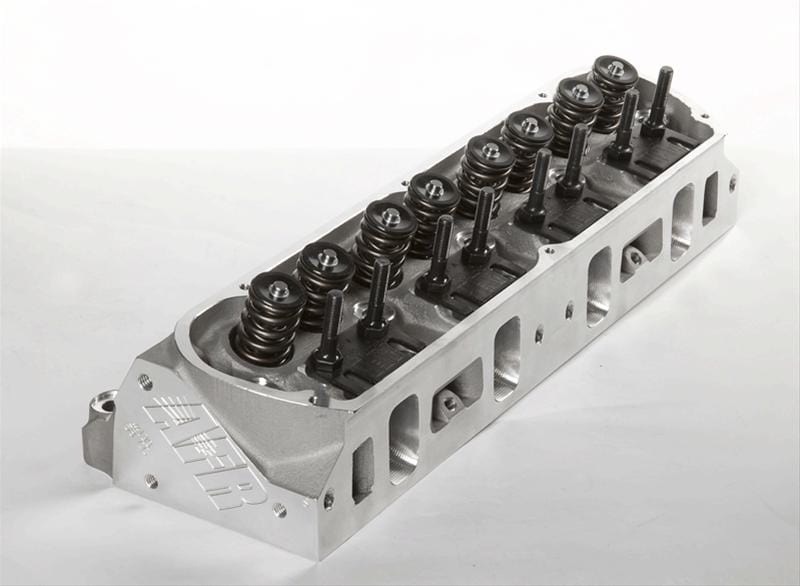

These AFR 185cc aluminum cylinder heads for small block Ford engines shave 50 pounds compared to cast iron. These heads are competition ready with a five-angle valve job and CNC-ported combustion chambers, exhaust, and intake ports. The 72cc combustion chambers, 185cc intake runners, and a ¾ in. thick head deck make them a perfect fit with nitrous or forced induction. AFR uses stainless 2.02 in. intake/1.60 in. exhaust valves, 0.600 max lift hydraulic roller dual valve springs, 7-degree Manley steel retainers, ⅜ in. ARP rocker studs, and bronze valve guides. They are drilled for ½ in. head bolts and have no provisions for use with an air pump or EGR valve.
