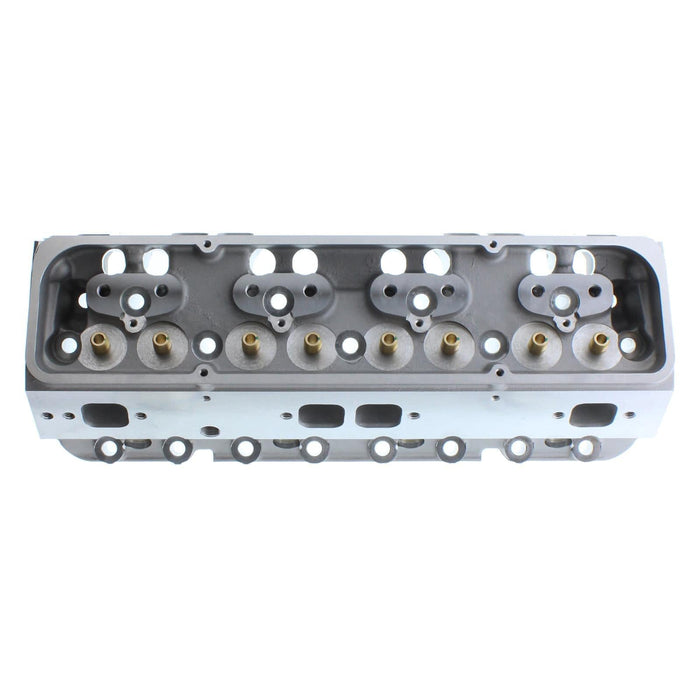

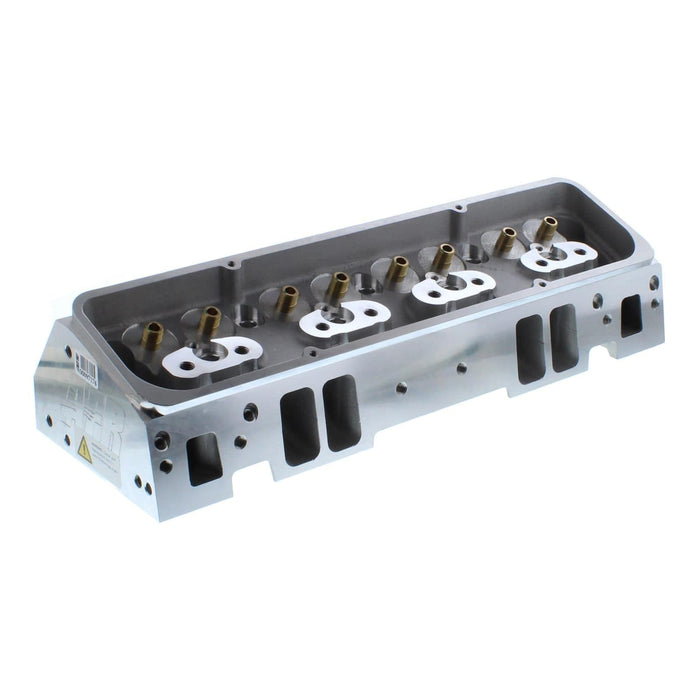

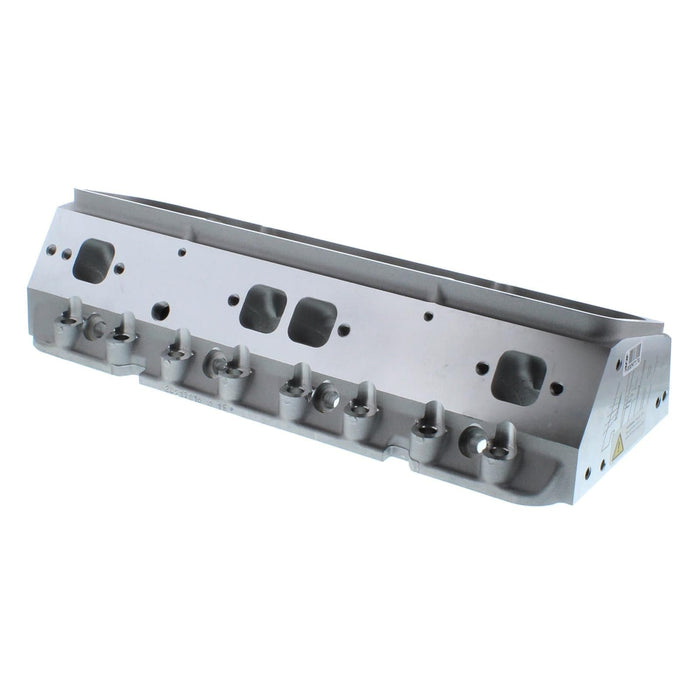

AFR 195cc SBC Enforcer Cylinder Heads 1002
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1002
Part Type: Cylinder Heads
Product Line: AFR 195cc SBC Enforcer Cylinder Heads
Automotive Fittings Part Number: AFR-1002
Combustion Chamber Volume (cc): 64
Intake Runner Volume (cc): 195cc
Exhaust Runner Volume (cc): 76cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Bare head.
Description:
AFR 195cc SBC Enforcer Cylinder heads feature their Permanent Mold "As-Cast" Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. These budget-friendly heads are perfect for your 350 to 400 cu. in. operating below 6,000 rpm. They come fully assembled with the identical components found in their higher end CNC-ported cylinder heads, such as ARP rockers studs, PAC Racing springs, Viton® valve seals, AFR adjustable guide plates, machined bead valve locks, hardened spring cups and ductile iron seats, and their one piece 8mm 21 4N stainless steel valves. The AFR 195cc SBC Enforcer cylinder heads are available in straight or angle plug, assembled or bare.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
