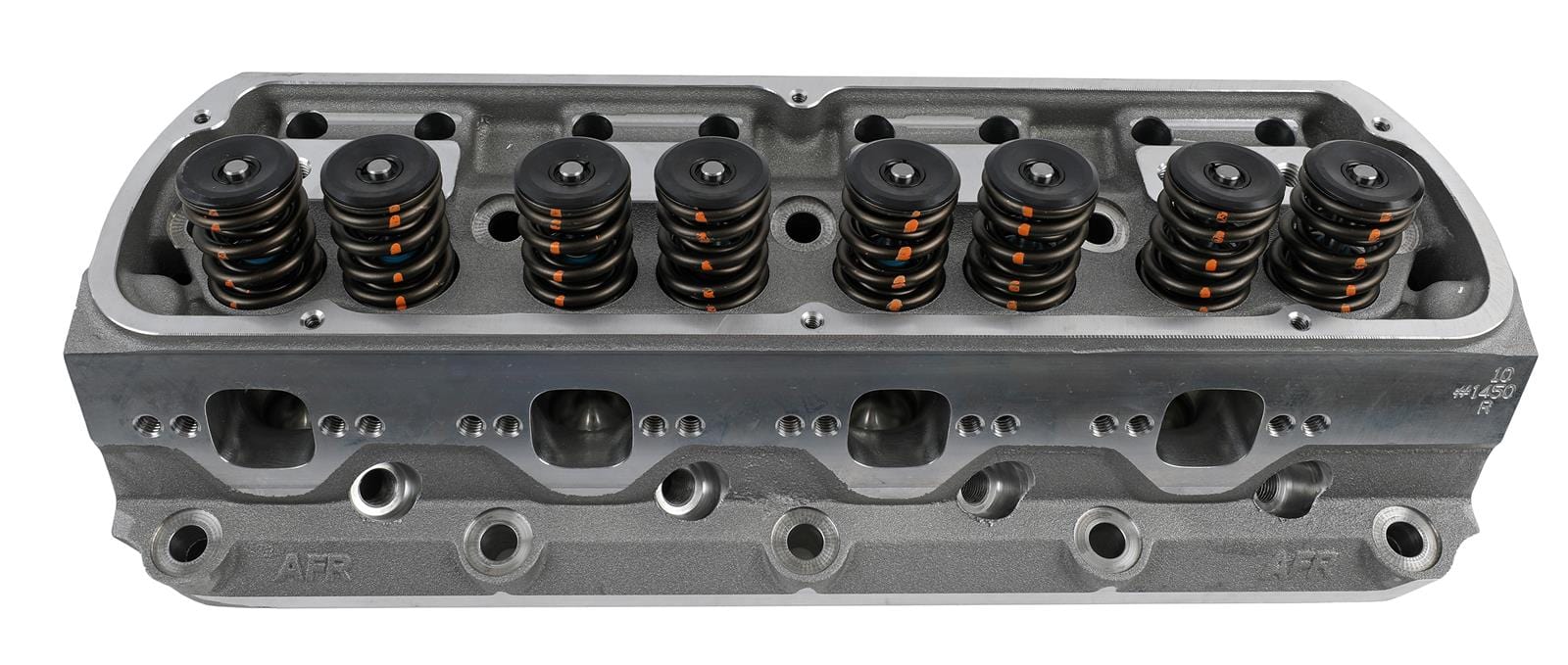

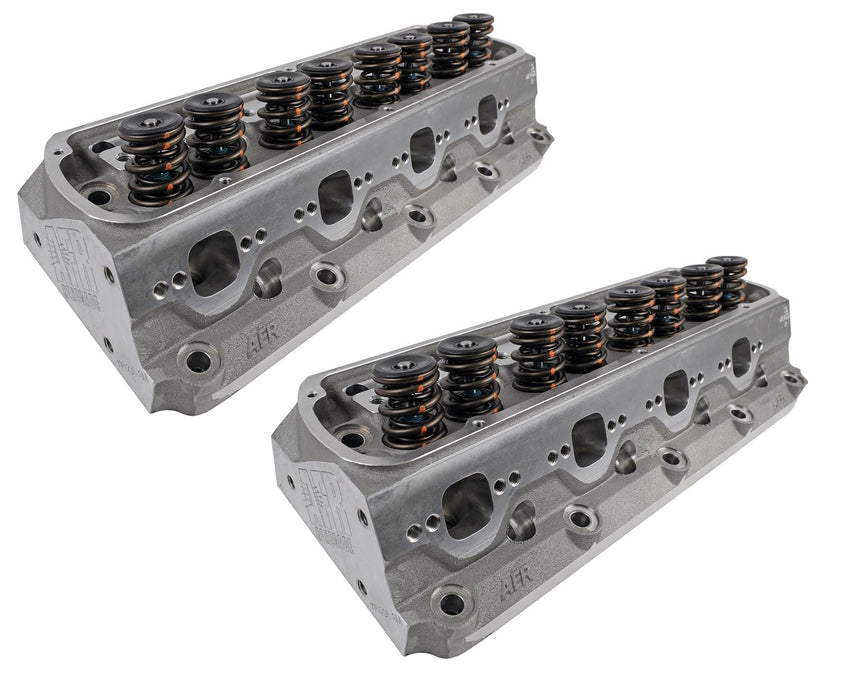

AFR 205cc SBF Renegade Race Heads 1450
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1450
Part Type: Cylinder Heads
Product Line: AFR 205cc SBF Renegade Race Heads
Automotive Fittings Part Number: AFR-1450
Combustion Chamber Volume (cc): 58
Intake Runner Volume (cc): 205cc
Exhaust Runner Volume (cc): 70cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.080 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.710 in.
Camshaft Style: Solid roller
Outside Diameter of Outer Spring (in.): 1.600 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: Exhaust ports are raised 0.125 in. higher than stock. These cylinder heads are race ready ported. Requires aftermarket pistons notched for valve clearance.
Description:
If you're looking for the world's finest street/strip heads available, then AFR's 205cc Renegade Race cylinder heads are your answer. With lightweight 8mm 2.080 in. intake and 1.600 in. exhaust valves, these heads move tremendous volumes of air through conservative runner volumes, spelling big torque and horsepower numbers. AFR's trademark 3/4 in. thick head deck makes them ideal for heavy nitrous or blower applications. They even offer an available nitrous or blower exhaust port option featuring a 73cc ultra high-flowing exhaust port.
