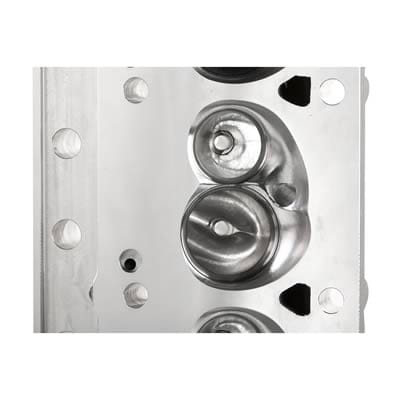

AFR 227cc SBC Eliminator Competition Racing Heads 1120NP
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1120NP
Part Type: Cylinder Heads
Product Line: AFR 227cc SBC Eliminator Competition Racing Heads
Automotive Fittings Part Number: AFR-1120NP
Combustion Chamber Volume (cc): 75
Intake Runner Volume (cc): 227cc
Exhaust Runner Volume (cc): 80cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.100 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold as a pair.
Notes: 60/40 valve spacing, not compatible with self-aligning rocker arms. .050 offset or shaft mount rocker arms recommended for optimized geometry. Exhaust port is raised 0.250 in. over stock.
Description:
AFR 227cc SBC Eliminator Competition Racing heads are 100 percent CNC-ported, with finer machine levels and improved port-shaped details for optimum flow characteristics, giving you the power you need to win.
The 227cc SBC Eliminator heads have a 3/4 in. thick head deck ideal for nitrous or blower applications. They come complete and ready-to-run with AFR power-proven components for ultimate power and reliability. Or choose "bare" heads (no parts) to design your own ultimate power package. These heads are available in standard and spread port exhausts. Bolt-on high performance with AFR 227cc SBC Eliminator Competition racing heads—you'll be the baddest thing on four wheels!
