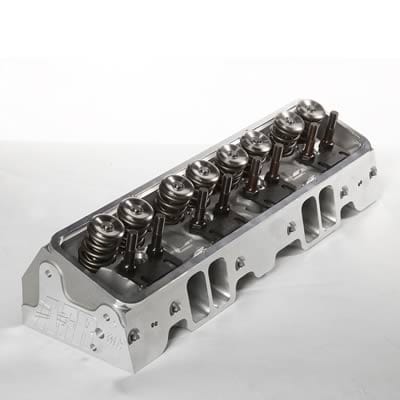

AFR 227cc SBC Eliminator Race Ready Racing Heads 1076
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1076
Part Type: Cylinder Heads
Product Line: AFR 227cc SBC Eliminator Race Ready Racing Heads
Automotive Fittings Part Number: AFR-1076
Combustion Chamber Volume (cc): 65
Intake Runner Volume (cc): 227cc
Exhaust Runner Volume (cc): 80cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.100 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Outside Diameter of Outer Spring (in.): 1.550 in.
Damper Spring Included: No
Number of Springs Per Valve: Dual
Retainers Included: No
Retainer Material: Chromoly steel
Locks Included: No
Lock Style: 10 degree
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold as a pair.
Notes: LT4 intake required. Race-ready CNC strip porting combustion chamber can be made between 55.00 and 65.00cc.
Description:
AFR 227cc SBC Eliminator Race Ready Racing heads offer outstanding track performance at a competitive price. Exhaust and intake ports and combustion chambers are 100 percent CNC-ported, with coarser machine levels for terrific flow characteristics and big power gains.
The 227cc SBC Eliminator heads feature a 3/4 in. thick head deck, ideal for nitrous or blower applications. They come complete and ready-to-run with quality AFR-proven components for maximum reliability—or choose "bare" heads (no parts) to design your own ultimate power package. These cylinder heads are available in standard and spread port exhausts. AFR 227cc SBC Eliminator Race Ready racing heads are a great choice for budget-minded racers.
