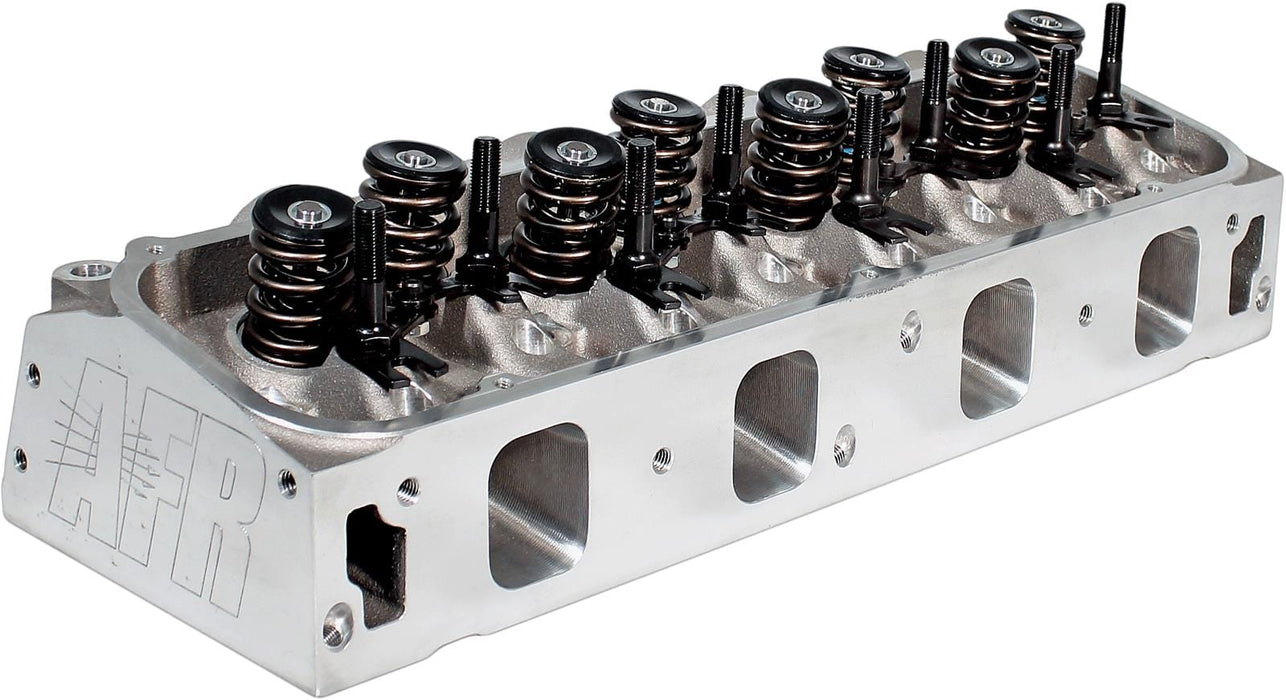

AFR 280cc BBF Bullitt 14 Degree Cylinder Heads 3804
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 3804
Part Type: Cylinder Heads
Product Line: AFR 280cc BBF Bullitt 14 Degree Cylinder Heads
Automotive Fittings Part Number: AFR-3804
Combustion Chamber Volume (cc): 85
Intake Runner Volume (cc): 280cc
Exhaust Runner Volume (cc): 132cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Square
Intake Valve Diameter (in.): 2.250 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Open chamber
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.760 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 14
Exhaust Valve Angle: 8
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Description:
AFR 280cc BBF Bullitt 14 degree cylinder heads are your shot to outgun the competition! They feature partially CNC-ported intakes, exhausts, and chambers, A356 aluminum castings, and high-quality components throughout with standard exhaust port locations. This clean-sheet redesign of their Bullitt cylinder heads deliver a decreased overall runner size, a more consistent cross-sectional area, carefully shaped combustion chambers, and repositioned valves to complement the intake and exhaust port design. Together they improve engine response, providing increases in horsepower and torque. The 280cc Bullitt heads are recommended for street, towing, or street/strip engines with displacements up to 477 cu. in., operating up to 6,200 rpm. Load your engine for performance with AFR Bullitts!
