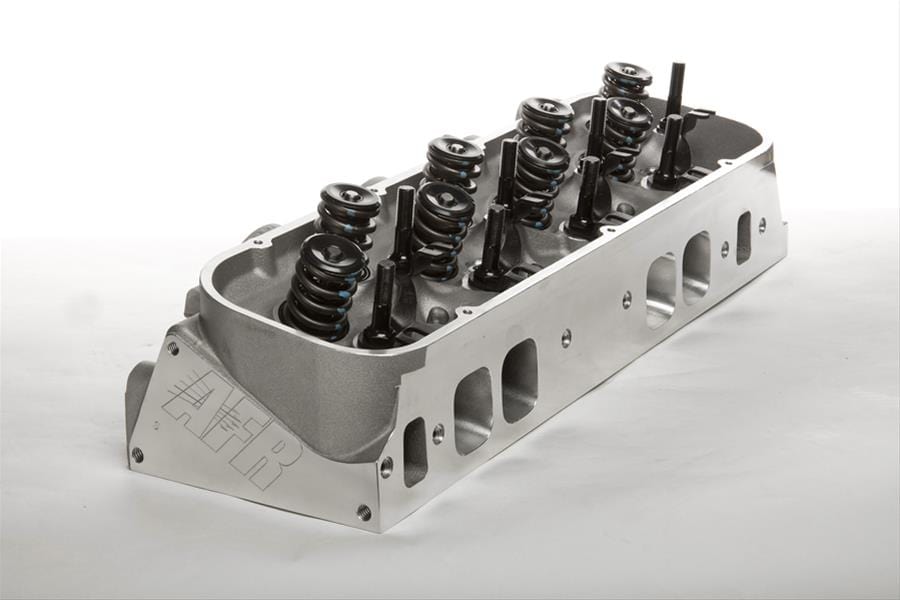

AFR 300cc Magnum BBC Cylinder Heads 3670
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 3670
Part Type: Cylinder Heads
Product Line: AFR 300cc Magnum BBC Cylinder Heads
Automotive Fittings Part Number: AFR-3670
Combustion Chamber Volume (cc): 113
Intake Runner Volume (cc): 300cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Oval
Intake Valve Diameter (in.): 2.300 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Semi-open
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.725 in.
Camshaft Style: Hydraulic roller
Outside Diameter of Outer Spring (in.): 1.550 in.
Damper Spring Included: No
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 24
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Description:
AFR 300cc Magnum BBC cylinder heads are suggested for aggressive builds. They boast 100 percent CNC-ported intake, exhaust, and chambers—as well as A356 aluminum casting and high-quality components throughout. These oval port competition packages are available with hydraulic or solid roller springs; and bare or assembled style.
