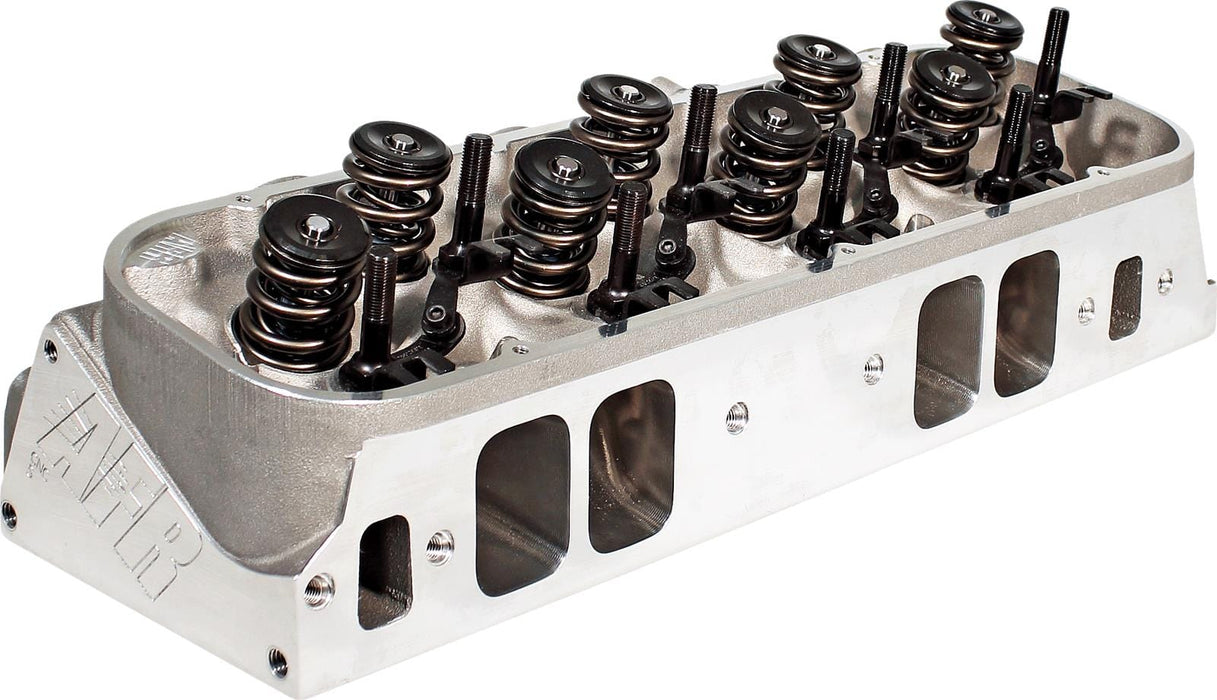

AFR 335cc Magnum BBC Cylinder Heads 2001

Brand: Airflow Research (AFR)
Manufacturer's Part Number: 2001
Part Type: Cylinder Heads
Product Line: AFR 335cc Magnum BBC Cylinder Heads
Automotive Fittings Part Number: AFR-2001
Combustion Chamber Volume (cc): 121
Intake Runner Volume (cc): 335cc
Exhaust Runner Volume (cc): 124cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.300 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.850 in.
Camshaft Style: Solid roller
Outside Diameter of Outer Spring (in.): 1.625 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: 1 in. longer head bolts required on the four bottom exhaust bolt holes. These cylinder heads are competition ported.
Description:
Are you looking for big torque and horsepower numbers? AFR's 335cc Magnum big block Chevy line of medium-volume intake runners will provide you with exactly that. The phrase "having your cake and eating it too" would certainly be appropriate with their moderately sized intake runners producing tremendous flow figures across the entire lift range (AFR CNC 335 heads flow 410 cfm!). These high-flow/high-velocity ports provide extreme versatility and fill the needs of many applications. From a max-effort, high-compression 454 to a 605 c.i.d. low-rpm marine application, these aluminum cylinder heads would be a great choice. AFR Magnum heads would also be ideal in larger cubic inch Pro Street applications with their broad torque range, as well as their significant rpm and horsepower capabilities. These cylinder heads will work best with a primary operating range of 3,000-7,000 rpm (this range is an average and will vary with engine displacement, as well as component selection). The 335cc heads come standard with AFR's trademark 3/4 in. thick head deck, reinforced rocker stud bosses, and premium one-piece stainless steel 2.300 in. intake and 1.880 in. exhaust valves. The standard combustion chamber volume for the fully CNC-ported 335cc is 121cc. They are available with an optional 114cc combustion chamber as well.
