AFR 377cc Magnum BBC Competition Racing Heads 2015-TI
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 2015-TI
Part Type: Cylinder Heads
Product Line: AFR 377cc Magnum BBC Competition Racing Heads
Automotive Fittings Part Number: AFR-2015-TI
Combustion Chamber Volume (cc): 122
Intake Runner Volume (cc): 377cc
Exhaust Runner Volume (cc): 135cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.300 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Open chamber
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.850 in.
Camshaft Style: Solid roller
Outside Diameter of Outer Spring (in.): 1.625 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Description:

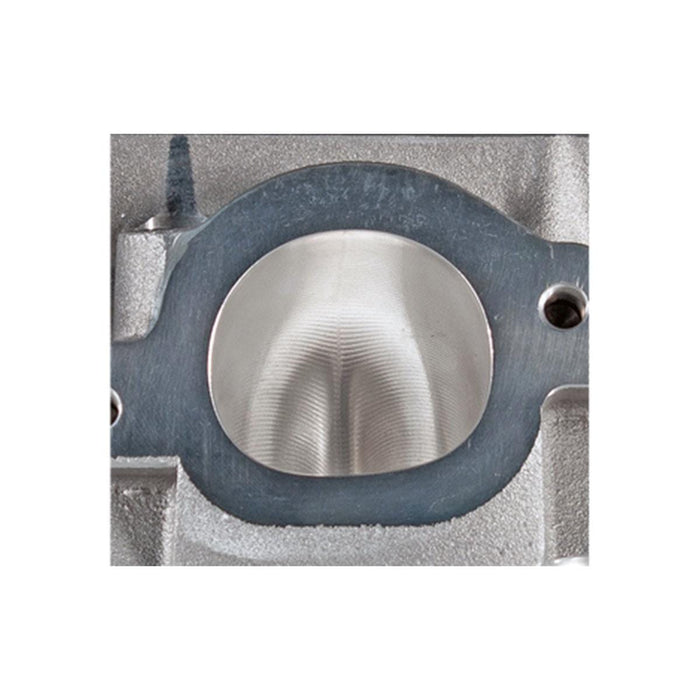

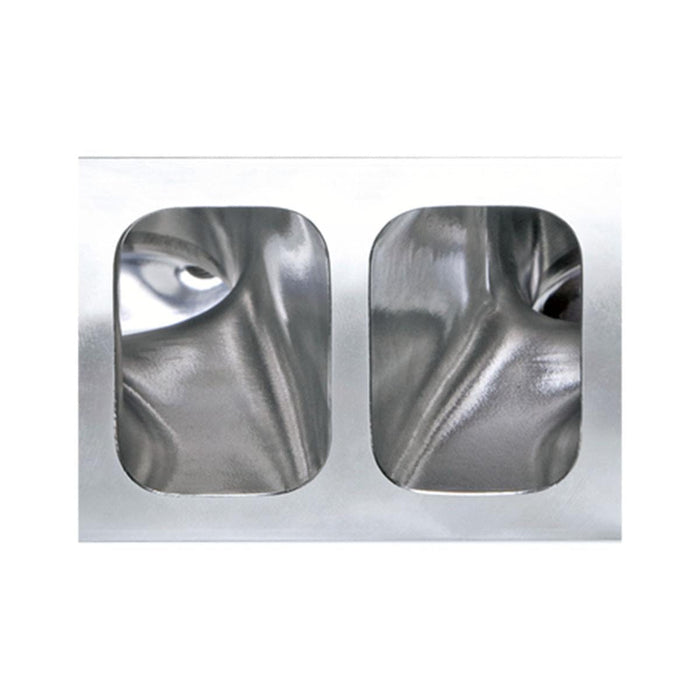

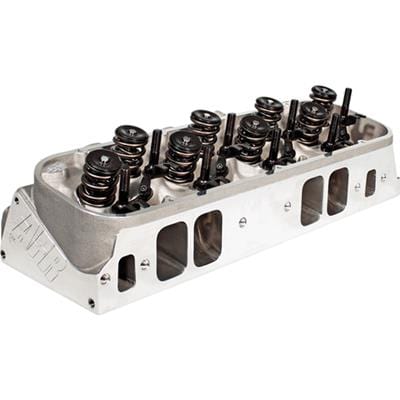

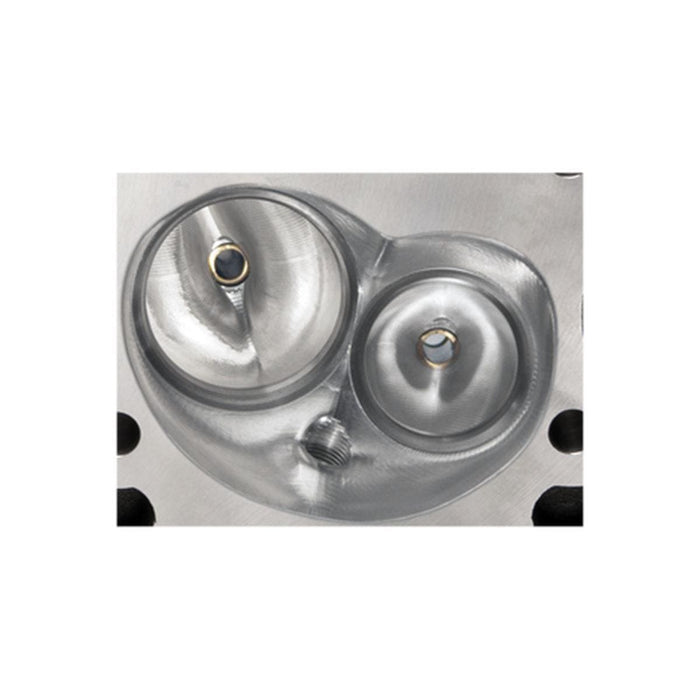

AFR 377cc Magnum BBC Competition racing heads feature 100 percent CNC-ported intakes, exhausts, and chambers; A356 aluminum castings, Titanium retainers, and high-quality components throughout. These Magnum BBC heads are best suited for large displacement (540 plus) racing engines operating at or below 7600 rpm. They are available assembled and bare.
AFR assembled 377cc Magnum BBC heads typically include:
* 11/32 in. intake valves
* 11/32 in. Tulip exhaust Valves
* PAC Racing Spring 1.625 O.D. Solid Roller, 275 lbs. on seat, .850 maximum lift
* 10 degree Titanium retainers
* 10 degree 11/32 in. valve locks with lash cap recess
* ARP 7/16 in. rocker intake and exhaust studs
* Adjustable 3/8 in. guide plates
* 11/32 in. Viton® valve seals
* Hardened spring cup
* Intake and exhaust valve seats
* 11/32 in. intake and exhaust bronze valve guides
