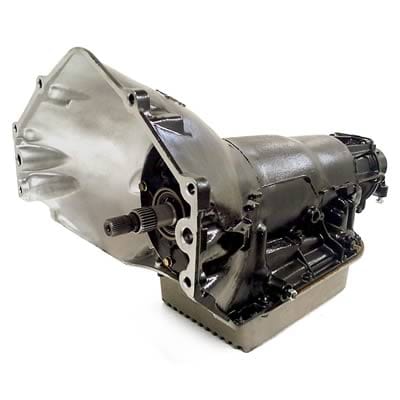

ATI TH400 Transmissions ATI401300
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: ATI401300
Part Type: Automatic Transmissions
Product Line: ATI TH400 Transmissions
Automotive Fittings Part Number: ATI-401300
UPC: 800157001499
Number of Gears: 3

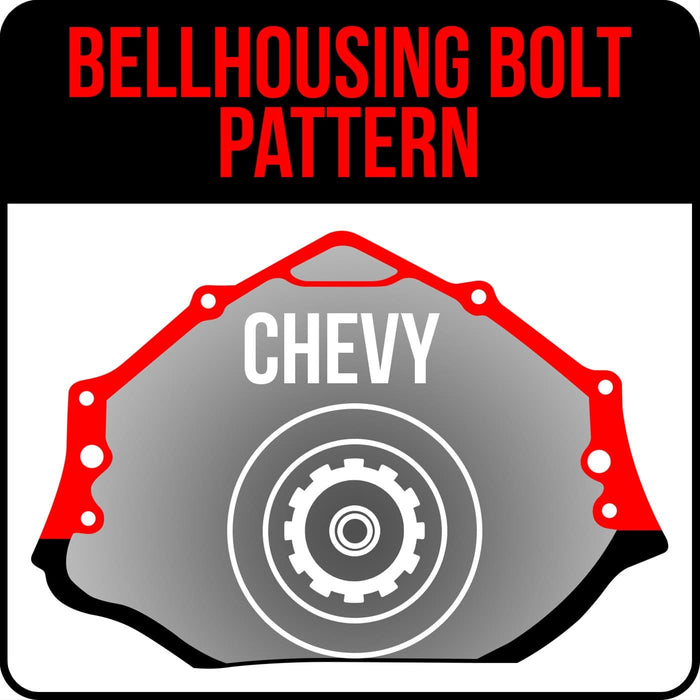

Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 700
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: No
Lockup Compatible: No
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Black
Tailshaft Length (in.): 4.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Hardened steel
First Gear Ratio (Automatic Transmissions): 2.48
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually.
Notes: Transmission case ears cut-off, no inspection pan mounts.
Description:
ATI Performance Products TH400 transmissions offer great performance for 400 c.i.d. or larger big blocks.
Modifications and options include:
* Fully blueprinted and equipped with high-flow lube circuits, increased torque capacity, and hard chrome oil rings
* Sprags replaced with heavy-duty units
* Clutch packs are assembled for individual applications
* Compu-Flow valve body standard
* Special low-gear sets for increased launch capability
* Lightweight options available to upgrade the transmission
