Turbo Oil Drain Scavenge Tank/Collector

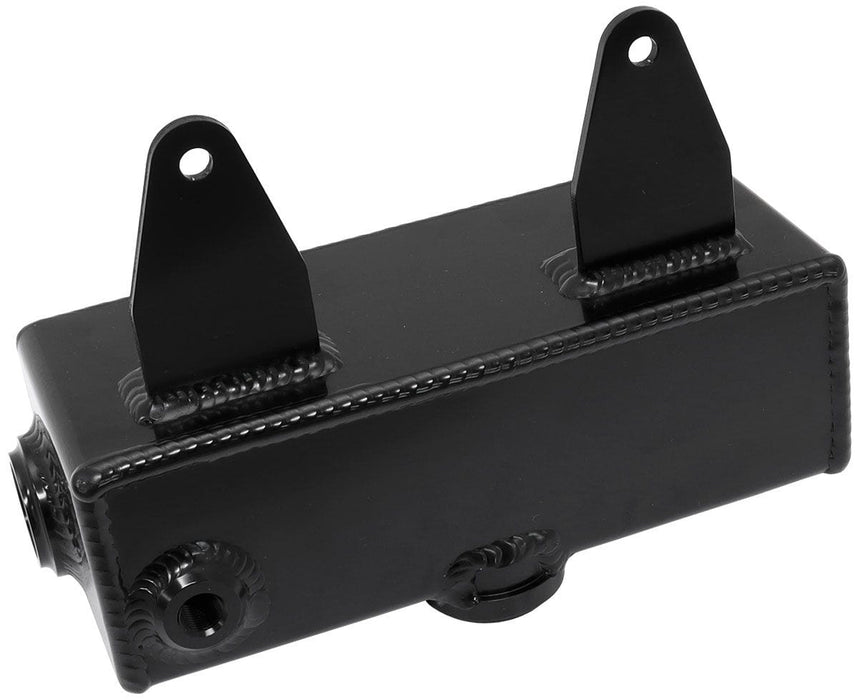

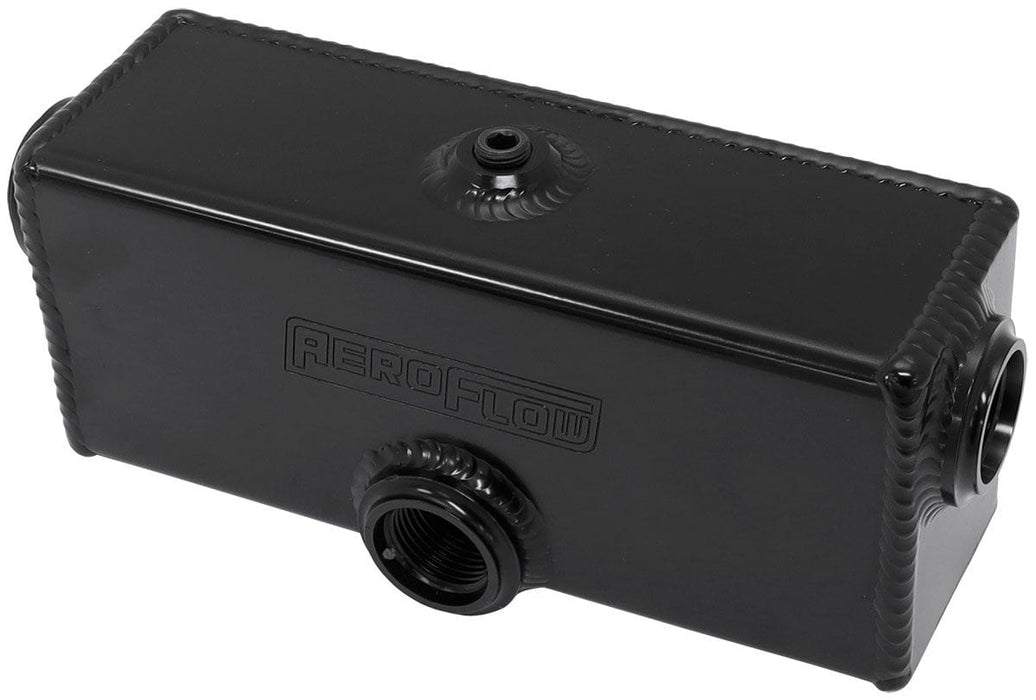

This neat little compact tank is specifically designed as a turbo oil drain scavenge drain tank or collector. This makes it a great tank for low mount turbocharger options or if you have a turbocharger installed in a location where a free flowing drain hose is not possible. This tank will allow oil to collect in this sump and you must have a oil scavenge pump (AF49-1200 sold separately) to draw the oil out of this tank and transfer it back to the engine sump. Each side of the tank has a female -12ORB which can be used as a inlet from the drain on the turbocharger. With a female -10ORB which will be the feed line for the scavenge pump. Included on the top of this aluminium tank is a 1/8" NPT that is designed for a vent line which is important to stop the oil from aerating. As well as a 1/8" drain on the bottom of the tank if you require it to be emmptied from time to time
