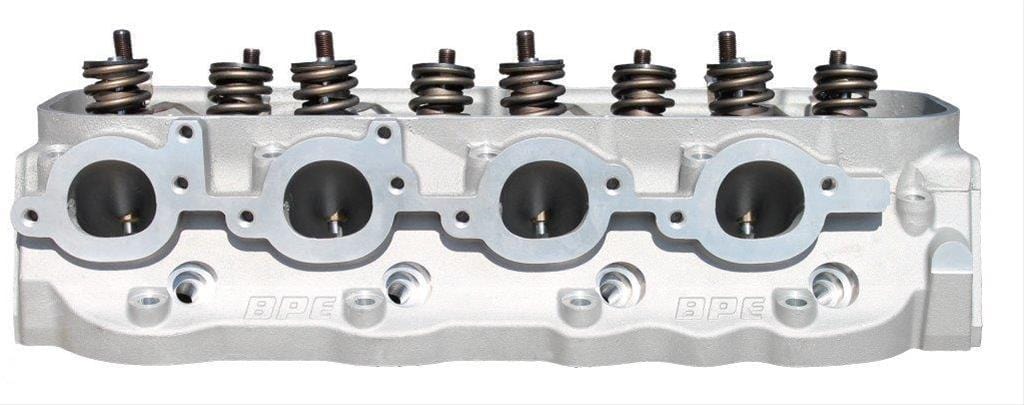

BluePrint Engines Muscle Series Cylinder Heads PS8012
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: PS8012
Part Type: Cylinder Heads
Product Line: BluePrint Engines Muscle Series Cylinder Heads
Automotive Fittings Part Number: MLL-PS8012
UPC: 00887753744586

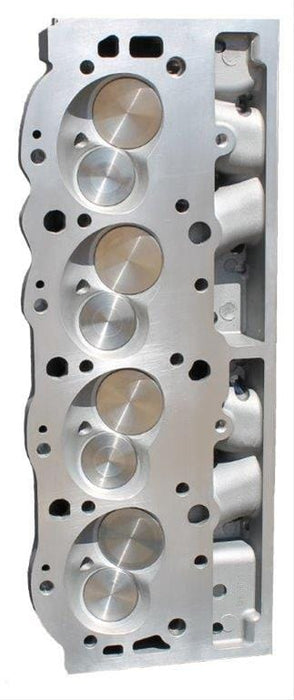

Combustion Chamber Volume (cc): 119
Intake Runner Volume (cc): 358cc
Exhaust Runner Volume (cc): 125cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.300 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.650 in.
Camshaft Style: Hydraulic roller
Outside Diameter of Outer Spring (in.): 1.540 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle
Valve Seat Material: Chrome nickel
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Description:
Welcome to a new class of high performance cylinder heads--BluePrint Muscle Series! These aluminum heads are assembled with the perfect match of components for outstanding, trouble-free performance. Plus, they give you more power behind the wheel and in your wallet! These all-cast heads are designed for hydraulic flat tappet and hydraulic roller cam engines with hefty intake runners, stainless steel valves, Viton® seals, and dual springs. BluePrint Engines stand in front of the class, offering both performance and cost-conscious enthusiasts a powerful alternative--Muscle Series cylinder heads.
