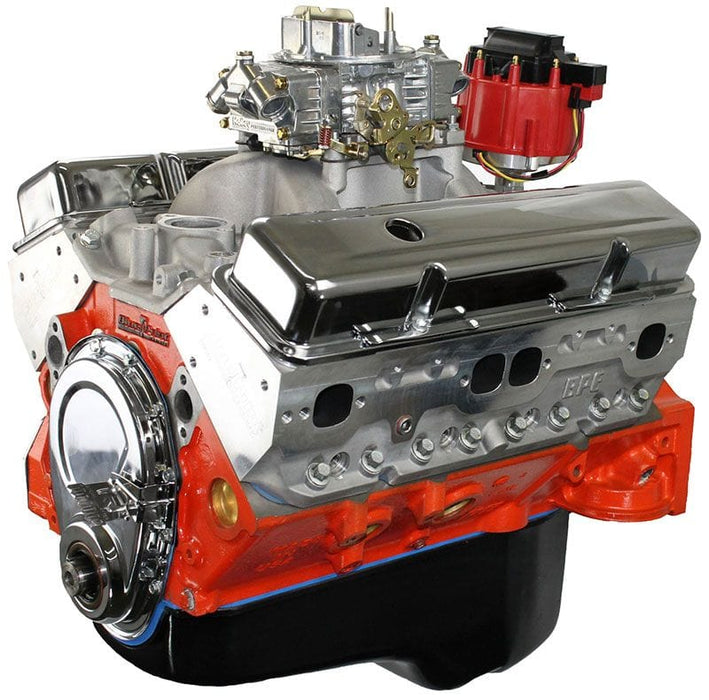

BLUEPRINT 508HP / 473 FT LBS, 10.3:1 Comp, Aluminium Heads, Hydraulic Roller SB Chev 400 c.i.d Crate Engine, Dressed PSEBP4002CTC1 Autofit

SB Chev 400 c.i.d Crate Engine, Dressed PSEBP4002CTC1

PSEBP4002CTC1 - 400CID 508 HP SBC CRATE ENGINE
SKU PSEBP4002CTC1
by BLUEPRINT
Sold out
$22,478.74 +GST
$22,478.74 +GST - $22,478.74 +GST
$22,478.74 +GST
$20,923.69 +GST
$20,923.69 +GST - $20,923.69 +GST
$20,923.69 +GST
$24062.2435 Including GST (NZ Customers only)
Availability:
Out of stock
SB Chev 400 c.i.d Crate Engine, Dressed

508HP / 473 FT LBS, 10.3:1 Comp, Aluminium Heads, Hydraulic Roller

PSEBP4002CTC1

EBP4002CTC1

NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly. DESCRIPTION Dyno Tested HP & Torque: 508 HP / 473 FT LBS Compression Ratio: 10.3:1 Aluminum Heads Hydraulic Roller Cam Forged Crank Forged Pistons BLOCK: NEW BluePrint Cast Iron Block Manufactured and Machined in the USA! 4-Bolt Main 4.125" 1-Piece Rear Main Seal Mech fuel pump provision: Yes Passenger Side Dipstick Drilled and tapped for clutch linkage ROTATING ASSEMBLY: New BluePrint Forged Crankshaft 3.750" Stroke OEM type 5.700" connecting rods w/ 150,000 psi bolts Forged Pistons Internal Front/ External Rear CYLINDER HEADS: BluePrint Aluminum Cylinder Heads - HP8103 64cc chamber 2.08" intake/1.60" exhaust valves 220cc intake/67cc exhaust runners CAM SPECS: Cam Type: Roller .555 Intake .576 Exhaust 236 Intake / 242 Exhaust duration @ .050 - 110° lobe separation IGNITION TIMING: 10 -16° inital and total timing 32-34° at 3500 RPM ALSO INCLUDES: Intake Manifold dual plane, satin aluminum 850cfm Carburetor Valve covers, oil pan and timing cover Brass freeze plugs Dyno test results shipped with engine NOTES: NEW BluePrint block manufactured and machined in the USA! Not for EGR Comp Cams Engine Break-In Oil 15W-50, 1 Quart (946ml) Part No. CO1591
