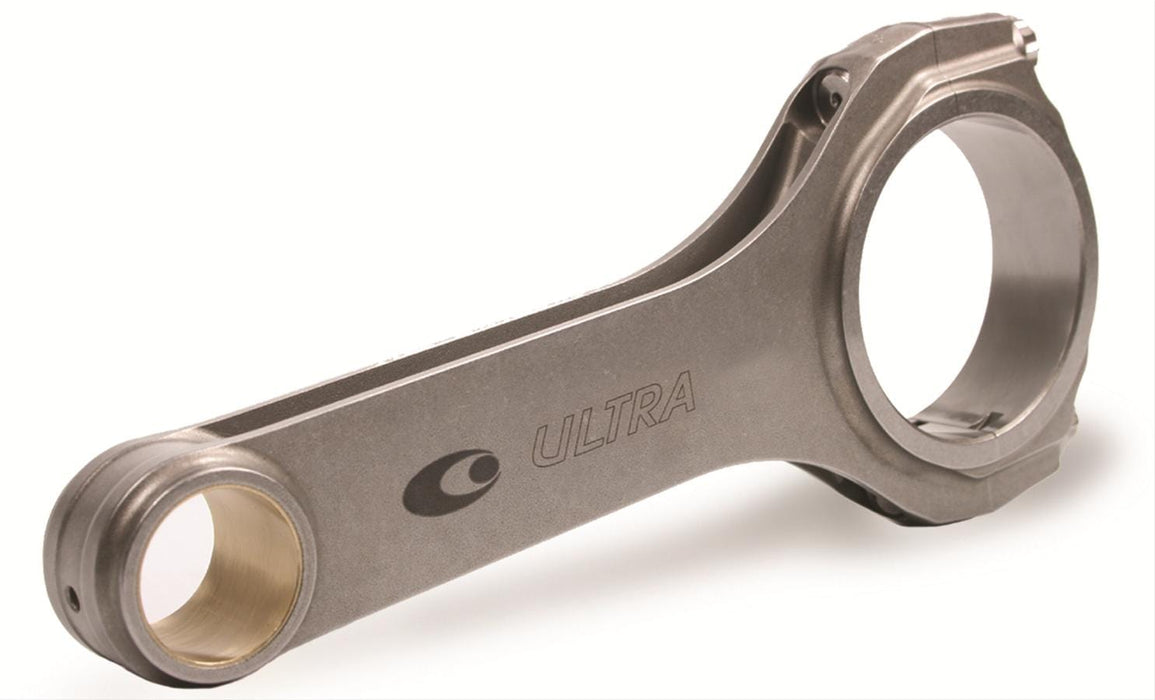

Callies Ultra Connecting Rods U16302
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: U16302
Part Type: Connecting Rods
Product Line: Callies Ultra Connecting Rods
Automotive Fittings Part Number: CPI-U16302
Connecting Rod Length Center to Center (in.): 6.350 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4330 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP L19 alloy
Fastener Tensile Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 660
Advertised Horsepower Rating: 1,500 hp
Pin End Width (in.): 0.988 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
Description:
Callies Ultra connecting rods are made with pride to exacting specifications. They are produced from extremely clean Timken steel, meticulously crafted with great attention to detail. If you choose Callies Ultra connecting rods, be confident of dependable performance and outstanding workmanship.
