Callies Ultra XD Connecting Rods U19135
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: U19135
Part Type: Connecting Rods
Product Line: Callies Ultra XD Connecting Rods
Automotive Fittings Part Number: CPI-U19135
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4330 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP L19 alloy
Fastener Tensile Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 643
Advertised Horsepower Rating: 1,500 hp
Pin End Width (in.): 0.988 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Custom pistons required when using longer than stock connecting rods.
Description:

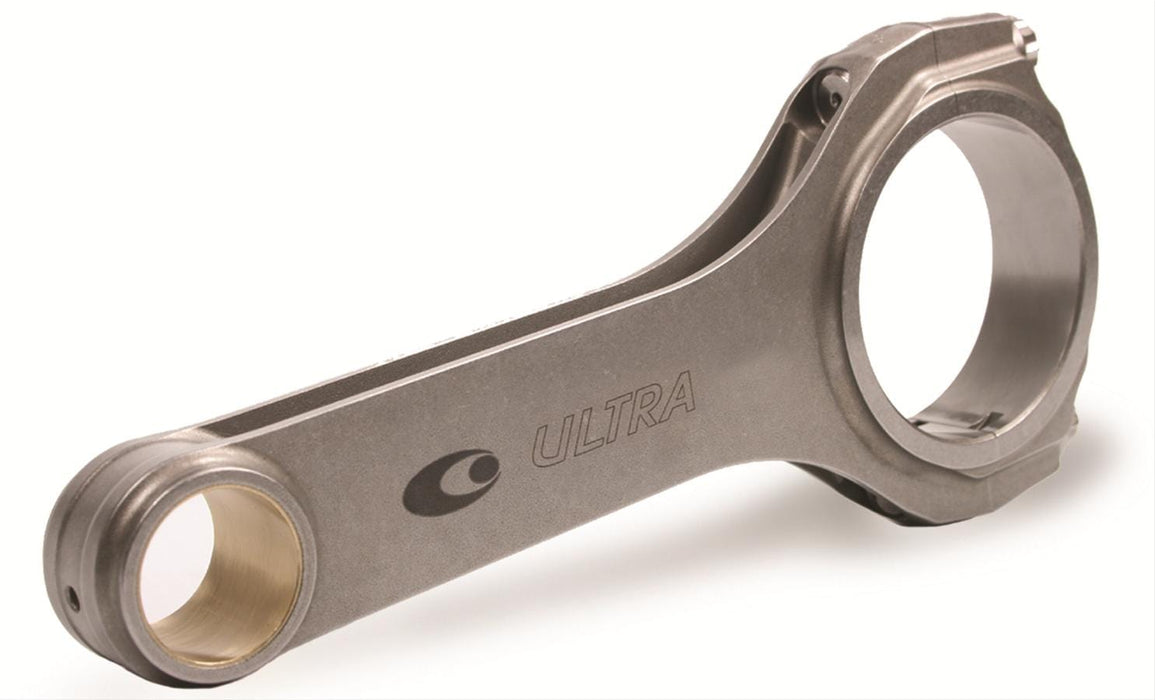

Callies Ultra XD connecting rods are configured to provide greater flexibility in cam selection for your stroker engine build. Their canted housings allow a larger lobe/base circle/lift camshaft to be selected. Callies Ultra XD connecting rods provide greater rod to cam clearance to improve valvetrain performance. In most cases, Ultra XD rods will provide approximately .050 in. more cam clearance than Callies conventional Ultra rods, and substantially more than many competitors' rods. These rods are machined from premium Timken 4330 steel and are intended for severe-duty applications.
